10 parts in Resettable Fuse ← browse all
| mpn | lcsc | description | package | jlc class | |
|---|---|---|---|---|---|
| SMD0603-010/36N BORN(伯恩半导体) | C49073053 | 36V 100mA Voltage - Max:36V Current - Max:40A Hold Current:100mA Trip Current:300mA Power Dissipation:500mW Resistance - Initial (Ri) (Min):900mΩ Resistance - Post Trip (R1) (Max):8Ω Time to Trip(Max):1s Operating Temperature:-40℃~+85℃ Operating Temperature:-40℃~+8 [Resettable Fuse] | 0603 | Extended Part | |
| MF-NSMF050/24X-2 BOURNS | C27856618 | 24V 500mA Voltage - Max:24V Current - Max:80A Hold Current:500mA Trip Current:1A Power Dissipation:600mW Resistance - Initial (Ri) (Min):150mΩ Resistance - Post Trip (R1) (Max):750mΩ Time to Trip(Max):100ms Operating Temperature:-40℃~+85℃ Operating Temperature:-40℃ [Resettable Fuse] | 1206 | Extended Part | |
| 1206L050/48NR LUTE(陆特) | C42369219 | 1206 resettable fuse, 48V max, 0.50A hold, 1A trip, 40A max, 1W, Ri 150mΩ min, R1 850mΩ max, 100ms trip, -40°C~+85°C. [Resettable Fuse] | 1206 | Extended Part | |
| 1812L150/24GR LUTE(陆特) | C22392774 | 1812 resettable fuse, 24V max, 1.5A hold, 3A trip, 40A max, 1.2W, Ri 40mΩ min, R1 160mΩ max, 500ms trip, -40°C~+85°C. [Resettable Fuse] | 1812 | Extended Part | |
| 0603L050SLYR Littelfuse(美国力特) | C207014 | 0603 resettable fuse, 6V max, 500mA hold, 1A trip, 50A max, 600mW, Ri 70mΩ min, R1 350mΩ max, 100ms trip, -40°C~+85°C. [Resettable Fuse] | 0603 | Extended Part | |
| 1206L050/15YR-A Littelfuse(美国力特) | C315893 | 500mA 15V Voltage - Max:15V Current - Max:100A Hold Current:500mA Trip Current:1A Power Dissipation:600mW Resistance - Initial (Ri) (Min):150mΩ Resistance - Post Trip (R1) (Max):750mΩ Time to Trip(Max):100ms Operating Temperature:-40℃~+85℃ Operating Temperature:-40 [Resettable Fuse] | 1206 | Extended Part | |
| 1206L150SLYR Littelfuse(美国力特) | C207037 | 1206 resettable fuse, 6V max, 1.5A hold, 3.9A trip, 50A max, 800mW, Ri 10mΩ min, R1 65mΩ max, 300ms trip, -40°C~+85°C. [Resettable Fuse] | 1206 | Extended Part | |
| 1812L200THPR Littelfuse(美国力特) | C207074 | 1812 resettable fuse, 8V max, 2A hold, 3.5A trip, 100A max, 800mW, Ri 20mΩ min, R1 70mΩ max, 2s trip, -40°C~+85°C. [Resettable Fuse] | 1812 | Extended Part | |
| 1206L110/24V YTL(亚特联) | C49318382 | 24V 1.1A Voltage - Max:24V Current - Max:40A Hold Current:1.1A Trip Current:2.2A Power Dissipation:1.2W Resistance - Initial (Ri) (Min):40mΩ Resistance - Post Trip (R1) (Max):270mΩ Time to Trip(Max):300ms Operating Temperature:-40℃~+85℃ Operating Temperature:-40℃~ [Resettable Fuse] | 1206 | Extended Part | |

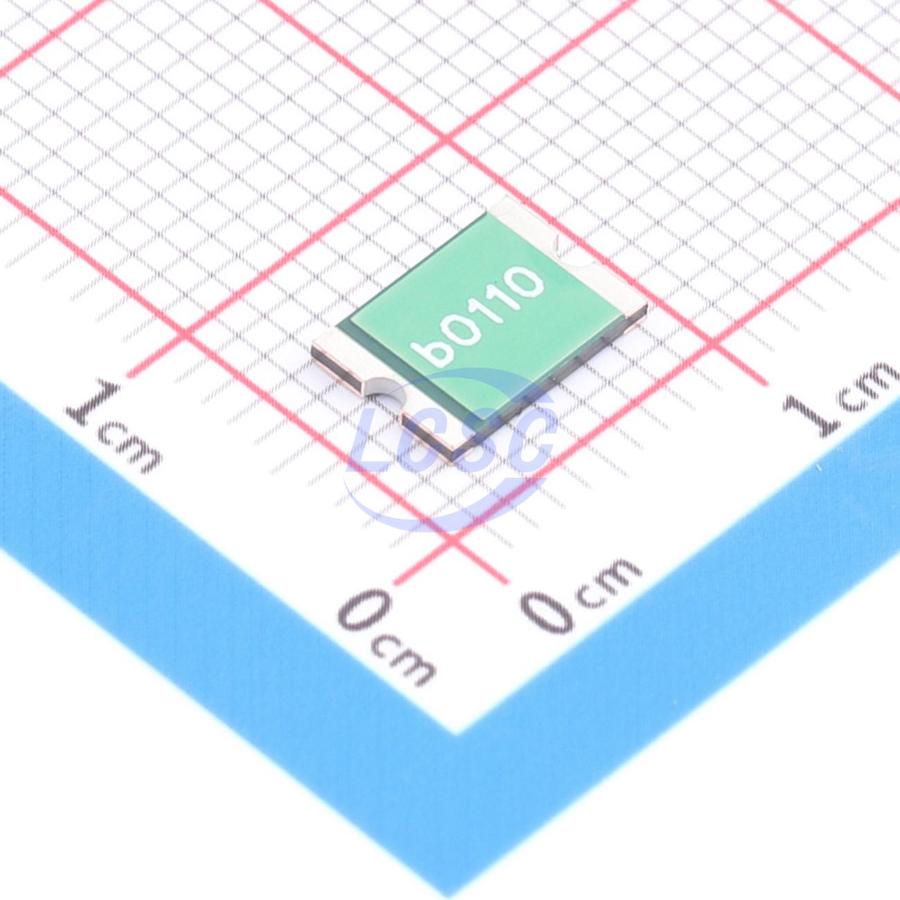

| 0ZCF0110FF2C belfuse | C3760725 | 0ZCF0110FF2C 33V 1.1A resettable fuse; max 100A; trip 2.2A; Pd 1.5W; Ri min 90mΩ; R1 max 410mΩ; trip max 500ms; -40°C~+85°C [Resettable Fuse] | SMD,5.1x7.4mm | Extended Part |
