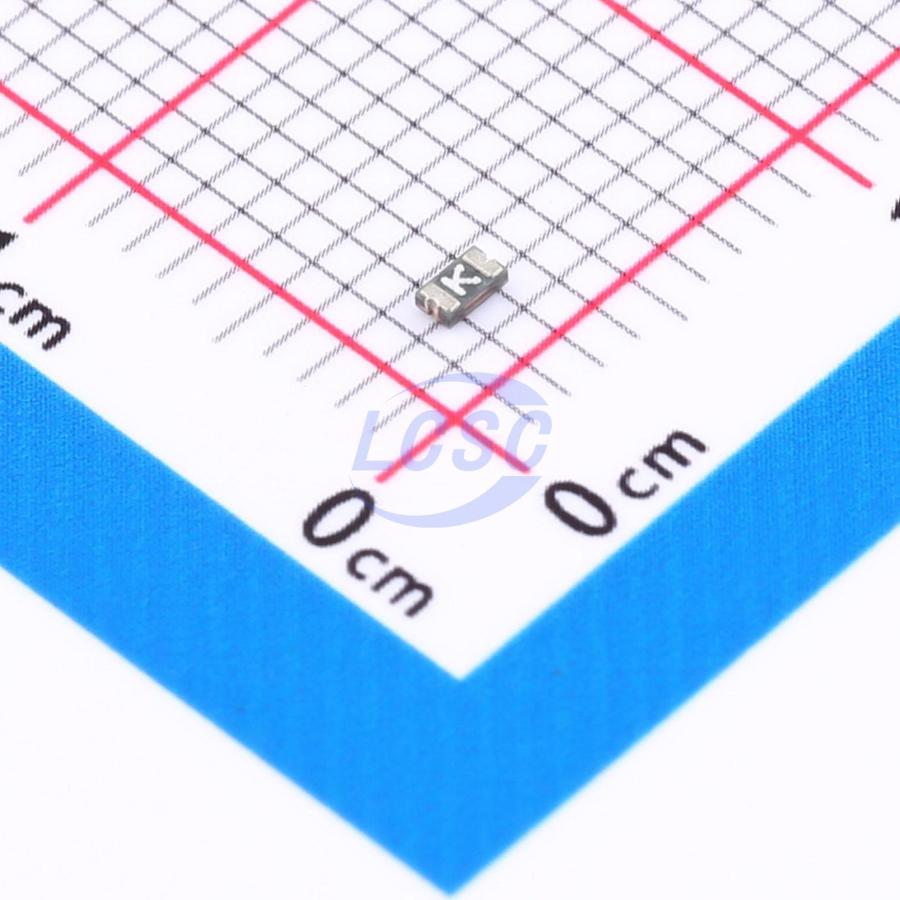

0603L050SLYR

Identity

Manufacturer: Littelfuse(美国力特)
Model / MPN: 0603L050SLYR
LCSC: C207014
Category: resettable-fuse
Description: 0603 resettable fuse, 6V max, 500mA hold, 1A trip, 50A max, 600mW, Ri 70mΩ min, R1 350mΩ max, 100ms trip, -40°C~+85°C.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: 0603
Pin count: Unknown
EasyEDA symbol UUID: 347cb4ee805e415c9ecb41dd7f000ee3
EasyEDA footprint UUID: 738a9bc6cebe4c9c80888c7a110a1b21
EasyEDA device UUID: 3a5591f542304ab79a1e6aacd3cb341d
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common board support, timing, EMI, and protection seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/0603L050SLYR/208133.html
Product URL: https://item.szlcsc.com/datasheet/0603L050SLYR/208133.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category resettable-fuse, interfaces none captured, package 0603, and EasyEDA footprint UUID 738a9bc6cebe4c9c80888c7a110a1b21.
