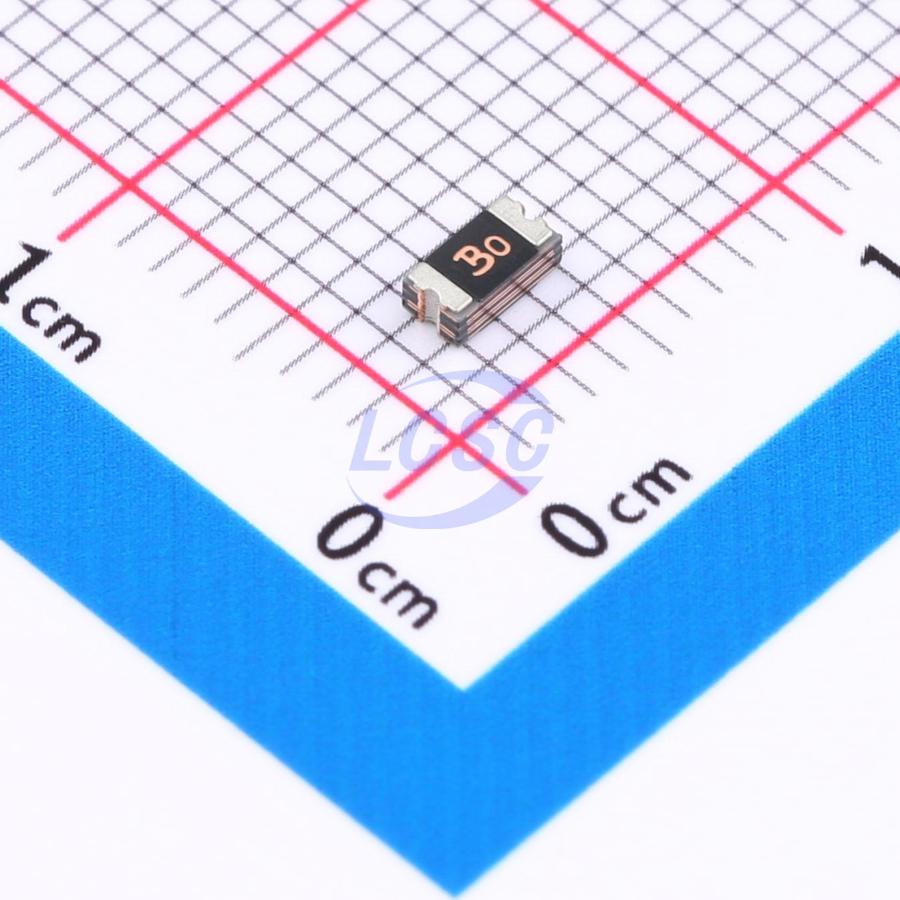

1206L110/24V

Identity

Manufacturer: YTL(亚特联)
Model / MPN: 1206L110/24V
LCSC: C49318382
Category: resettable-fuse
Description: 24V 1.1A Voltage - Max:24V Current - Max:40A Hold Current:1.1A Trip Current:2.2A Power Dissipation:1.2W Resistance - Initial (Ri) (Min):40mΩ Resistance - Post Trip (R1) (Max):270mΩ Time to Trip(Max):300ms Operating Temperature:-40℃~~+85℃ Operating Temperature:-40℃~~
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: 1206
Pin count: Unknown
EasyEDA symbol UUID: 97b45fd9c9fd4fb58669fd2d4ce4a69c
EasyEDA footprint UUID: 9af1693ff666470f93a7b3476fc72497
EasyEDA device UUID: 7e549877bcb847ad909c08bf4dec20ba
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common board support, timing, EMI, and protection seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/1206L110%252F24V/51790274.html
Product URL: https://item.szlcsc.com/datasheet/1206L110%252F24V/51790274.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category resettable-fuse, interfaces none captured, package 1206, and EasyEDA footprint UUID 9af1693ff666470f93a7b3476fc72497.
