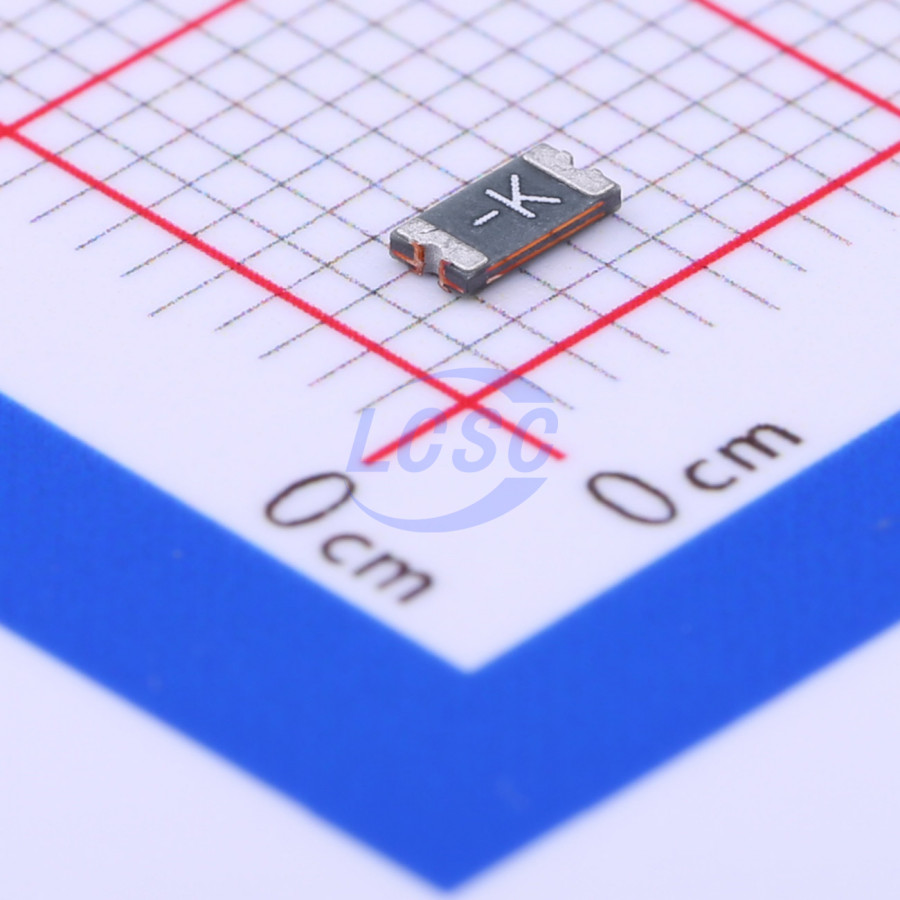

1206L150SLYR

Identity

Manufacturer: Littelfuse(美国力特)
Model / MPN: 1206L150SLYR
LCSC: C207037
Category: resettable-fuse
Description: 1206 resettable fuse, 6V max, 1.5A hold, 3.9A trip, 50A max, 800mW, Ri 10mΩ min, R1 65mΩ max, 300ms trip, -40°C~+85°C.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: 1206
Pin count: Unknown
EasyEDA symbol UUID: 696aa6821e1846b69bde0c2ab04f5e60
EasyEDA footprint UUID: 9af1693ff666470f93a7b3476fc72497
EasyEDA device UUID: 82e72669a368452f98e62b9c1adc0520
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common board support, timing, EMI, and protection seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/1206L150SLYR/208156.html
Product URL: https://item.szlcsc.com/datasheet/1206L150SLYR/208156.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category resettable-fuse, interfaces none captured, package 1206, and EasyEDA footprint UUID 9af1693ff666470f93a7b3476fc72497.

Search Keywords

seed:common-board-support-protection, source:easyeda-bridge, iot, common-pcb, pptc, 1206, 1.5a-hold, littelfuse, load-protection, resettable-fuse, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-common-board-support-timing-emi-and-protection-seed, power
