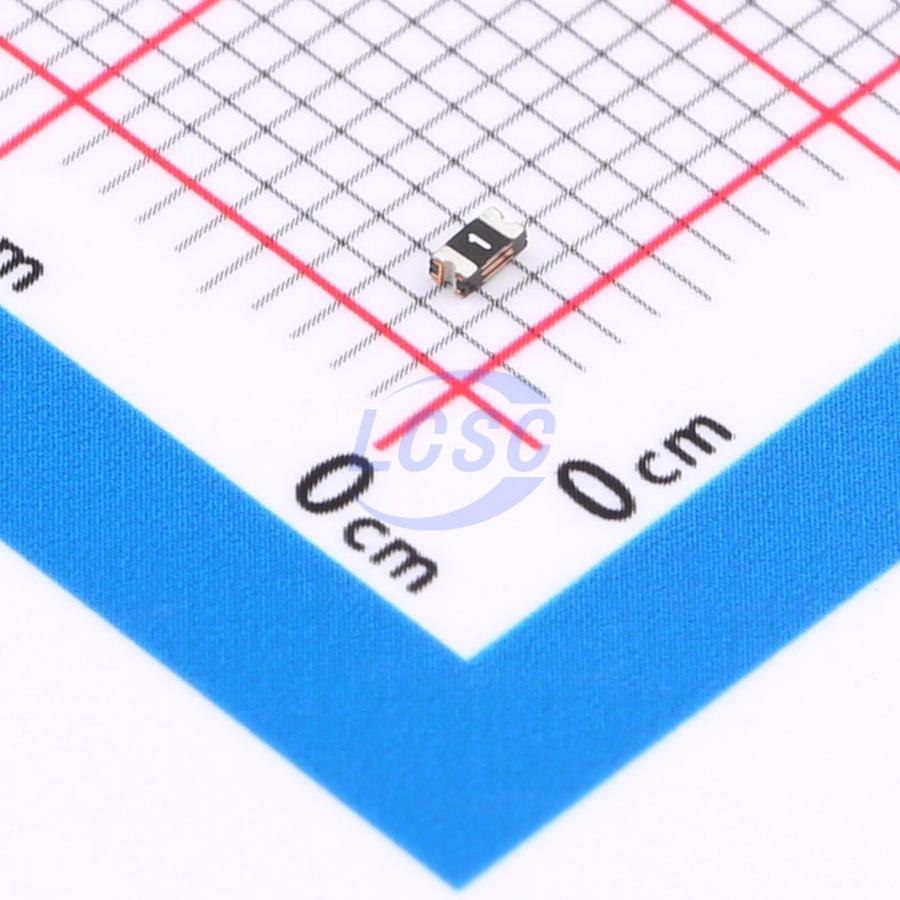

SMD0603-010/36N

Identity

• Manufacturer: BORN(伯恩半导体)
• Model / MPN: SMD0603-010/36N
• LCSC: C49073053
• Category: resettable-fuse
• Description: 36V 100mA Voltage - Max:36V Current - Max:40A Hold Current:100mA Trip Current:300mA Power Dissipation:500mW Resistance - Initial (Ri) (Min):900mΩ Resistance - Post Trip (R1) (Max):8Ω Time to Trip(Max):1s Operating Temperature:-40℃+85℃ Operating Temperature:-40℃+8
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: 0603
• Pin count: Unknown
• EasyEDA symbol UUID: e3f032636b134225ab5a40e8e2955c38
• EasyEDA footprint UUID: 62f38a5800b941c5870642ae8a26df1a
• EasyEDA device UUID: a18bfd6f02974a75bcadd9c378a00255
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common connectors, power, UI, and protection seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/SMD0603-010%252F36N/51445826.html
• Product URL: https://item.szlcsc.com/datasheet/SMD0603-010%252F36N/51445826.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category resettable-fuse, interfaces none captured, package 0603, and EasyEDA footprint UUID 62f38a5800b941c5870642ae8a26df1a.
