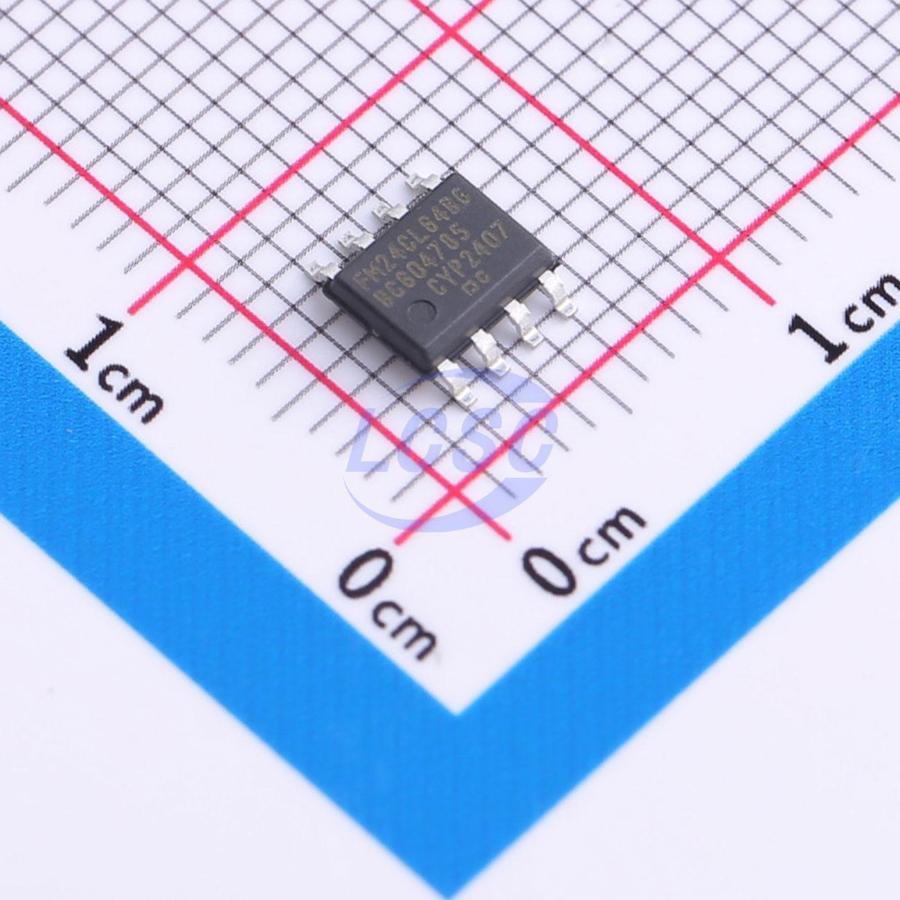

FM24CL64B-GTR

Identity

• Manufacturer: Infineon/CYPRESS(赛普拉斯)
• Model / MPN: FM24CL64B-GTR
• LCSC: C9829
• Category: fram-memory
• Description: FM24CL64B-GTR 2.7V3.65V I2C Interface:I2C Memory Size:64Kbit Voltage - Supply:2.7V3.65V Voltage - Supply:2.7V3.65V Current - Supply:300uA Clock Frequency:1MHz Standby Current(Isb):3uA Sleep mode current (Izz):- Operating Temperature:-40℃+85℃ Operating Temperature:-40℃~+85℃ Featur
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

• Package / footprint name: SOIC-8-150mil
• Pin count: 8
• EasyEDA symbol UUID: d0c30bd8c1104701b4816b3fc41dd58e
• EasyEDA footprint UUID: 1645372dca8547f19e87c6a19f78de2a
• EasyEDA device UUID: 93d0ad4920dd4c6898ceb54faef5690c
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: EasyEDA property: 300uA.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 2.7V~3.65V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common memory, timing, storage, and security seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/FM24CL64B-GTR/10359.html
• Product URL: https://item.szlcsc.com/datasheet/FM24CL64B-GTR/10359.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: high-endurance nonvolatile logs, counters, black-box records, and write-heavy configuration data
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category fram-memory, interfaces i2c, package SOIC-8-150mil, and EasyEDA footprint UUID 1645372dca8547f19e87c6a19f78de2a.
