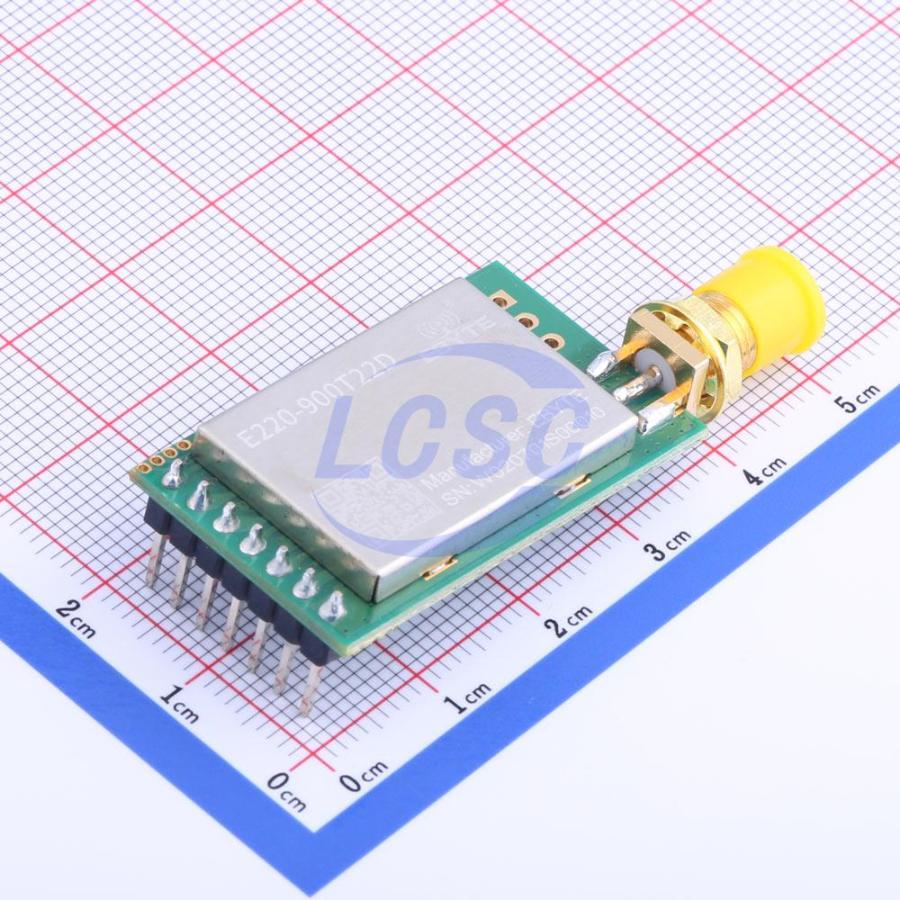

E220-900T22D

Identity

Manufacturer: EBYTE(亿佰特)
Model / MPN: E220-900T22D
LCSC: C970287
Category: lora-module
Description: 868/915MHz 22dBm LoRa wireless module, 2.3V~5.5V, UART, Output Power:22.5dBm, SMA Connector, RX 16.8mA, TX 110mA, -148dBm
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

uart: interface

Package And Footprint

Package / footprint name: 插件
Pin count: Unknown
EasyEDA symbol UUID: 5a491f14a7c14c7db9fea65e73f15d78
EasyEDA footprint UUID: c812e9af823e475ea237189c646a839d
EasyEDA device UUID: cb1f75f4191e4181a34187df7f0ca1e9
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: EasyEDA property: 16.8mA.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 2.3V~5.5V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connectivity, positioning, and RF interface seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/E220-900T22D/1059412.html
Product URL: https://item.szlcsc.com/datasheet/E220-900T22D/1059412.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category lora-module, interfaces uart, package 插件, and EasyEDA footprint UUID c812e9af823e475ea237189c646a839d.
