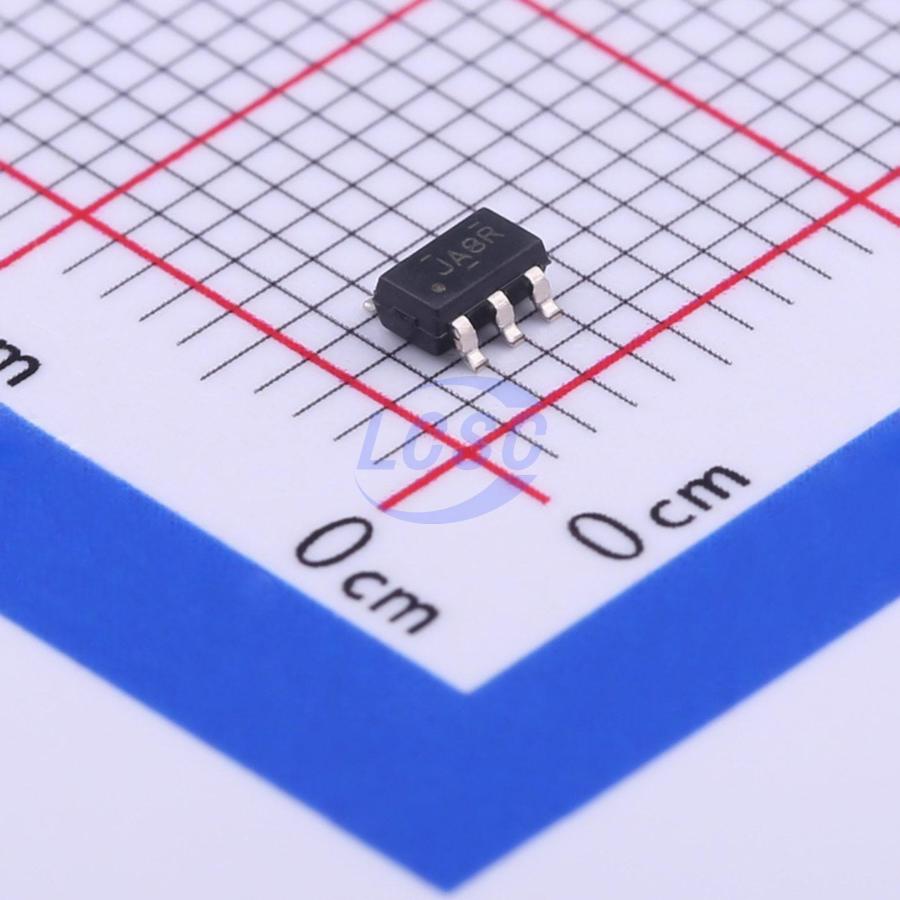

TS5A3159DBVR

Identity

Manufacturer: TI(德州仪器)
Model / MPN: TS5A3159DBVR
LCSC: C92485
Category: analog-switch
Description: TS5A3159 1-Q SPDT analog switch; 1.65V~~5.5V; 2:1, 1 channel; Ron 1Ω; Con 84pF; on 20ns, off 15ns; 100MHz; -40°C~~+85°C
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

analog: interface
gpio: interface

Package And Footprint

Package / footprint name: SOT-23-6
Pin count: 6
EasyEDA symbol UUID: a4cc9e17b8af48b28c27e6677bfce717
EasyEDA footprint UUID: ebc5370dc87d4461ad5320a48450ab14
EasyEDA device UUID: be844ebcb93b43f5884a393b9a8babf9
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common logic, level-shifting, bus-interface, and analog-switch seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://www.ti.com/cn/lit/gpn/ts5a3159
Product URL: https://www.ti.com/cn/lit/gpn/ts5a3159
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: routing analog sensor paths, audio/control signals, low-resistance SPST/SPDT switching, and selectable measurement paths
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category analog-switch, interfaces analog, gpio, package SOT-23-6, and EasyEDA footprint UUID ebc5370dc87d4461ad5320a48450ab14.
