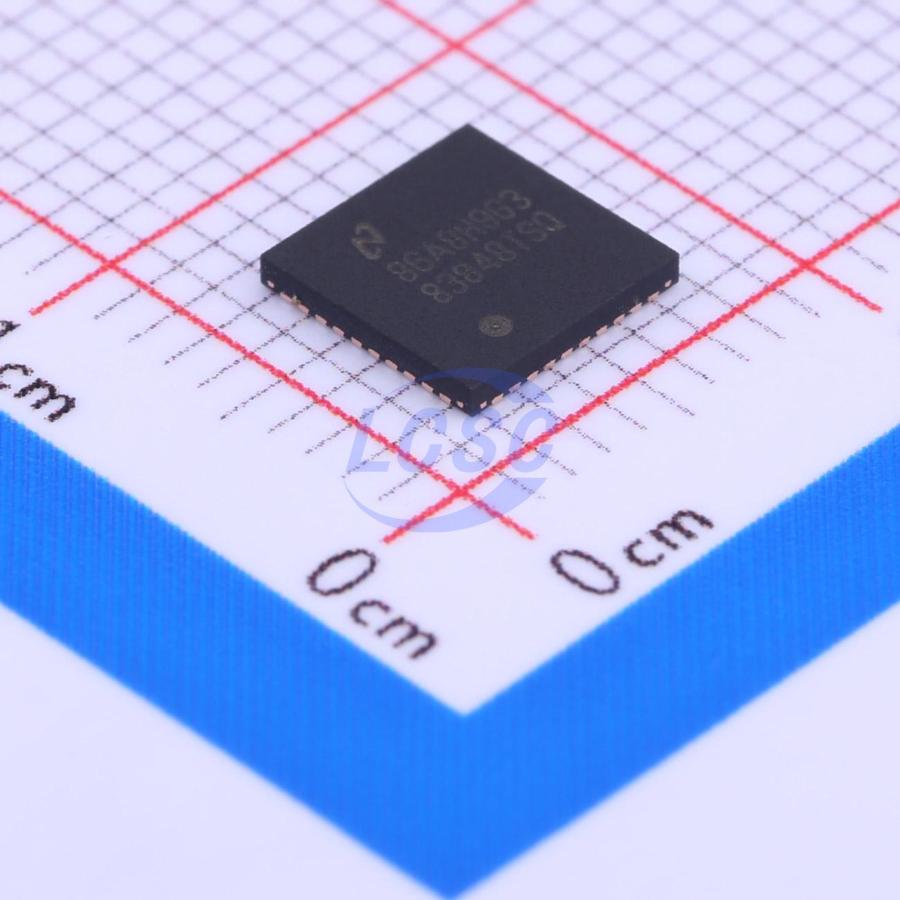

DP83848TSQ/NOPB

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: DP83848TSQ/NOPB
• LCSC: C92110
• Category: ethernet-phy
• Description: DP83848x PHYTER Mini/LS single-port 10/100 Mb/s Ethernet transceiver, MII;RMII, 10BASE-T;100BASE-TX, 3.3V, 264mW, -40°C~+125°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: WQFN-40-EP(6x6)
• Pin count: Unknown
• EasyEDA symbol UUID: aab11b852ad14a6398f2d82b39e4c314
• EasyEDA footprint UUID: 193c2e8198a144b591ad8f84a0bc9b30
• EasyEDA device UUID: 3055254c9ed04726bb0ebeaf37418b88
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 3.3V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified second-source/alternate seed for IC categories that only had one option
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/dp83848t
• Product URL: https://www.ti.com/cn/lit/gpn/dp83848t
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category ethernet-phy, interfaces none captured, package WQFN-40-EP(6x6), and EasyEDA footprint UUID 193c2e8198a144b591ad8f84a0bc9b30.
