SMA-KWE902

Identity

• Manufacturer: DreamLNK(骏晔科技)
• Model / MPN: SMA-KWE902
• LCSC: C914554
• Category: rf-connector

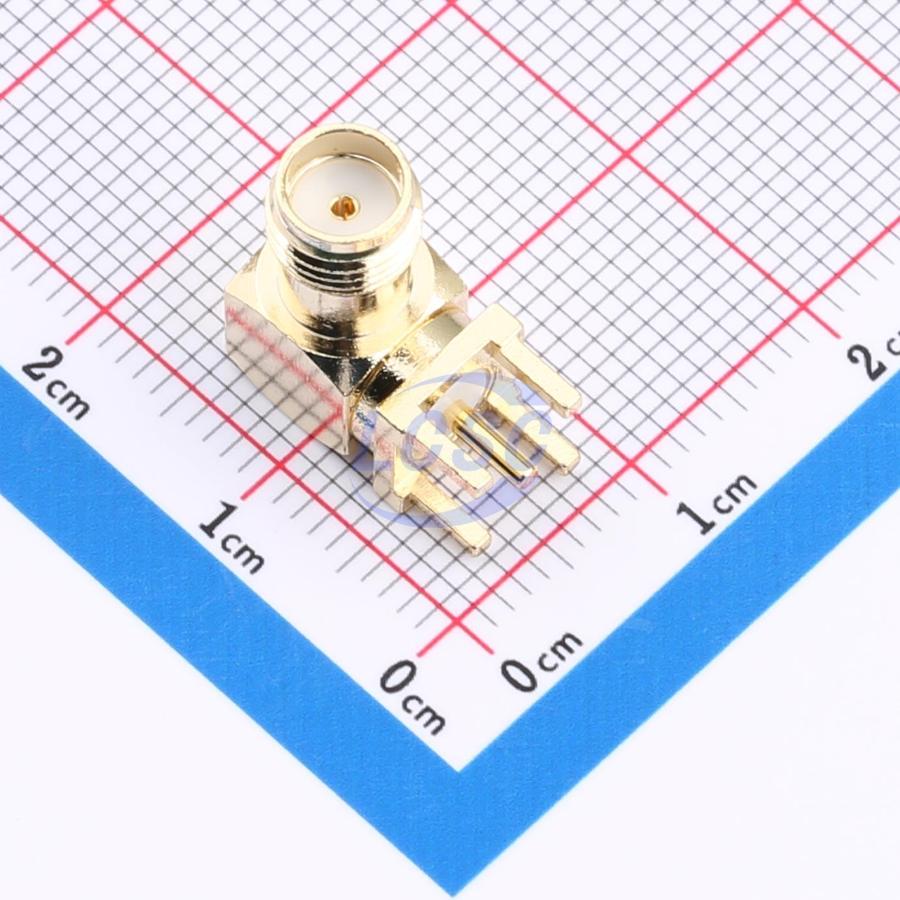

• Description: SMA right-angle board RF connector, inner bore, 6GHz, 1 port, Interface Diameter:5.35mm, 50Ω, Elbow, -55°C~+125°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• rf: interface

Package And Footprint

• Package / footprint name: 插件
• Pin count: Unknown
• EasyEDA symbol UUID: 91db70dd58384689a2ac82e70dad353a
• EasyEDA footprint UUID: f64d12c03d054bfaaf1161ebd133e977
• EasyEDA device UUID: ba6e3abbab3c4b7ebe18029f134d4399
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common connectivity, positioning, and RF interface seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/SMA-KWE902/985455.html
• Product URL: https://item.szlcsc.com/datasheet/SMA-KWE902/985455.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category rf-connector, interfaces rf, package 插件, and EasyEDA footprint UUID f64d12c03d054bfaaf1161ebd133e977.
