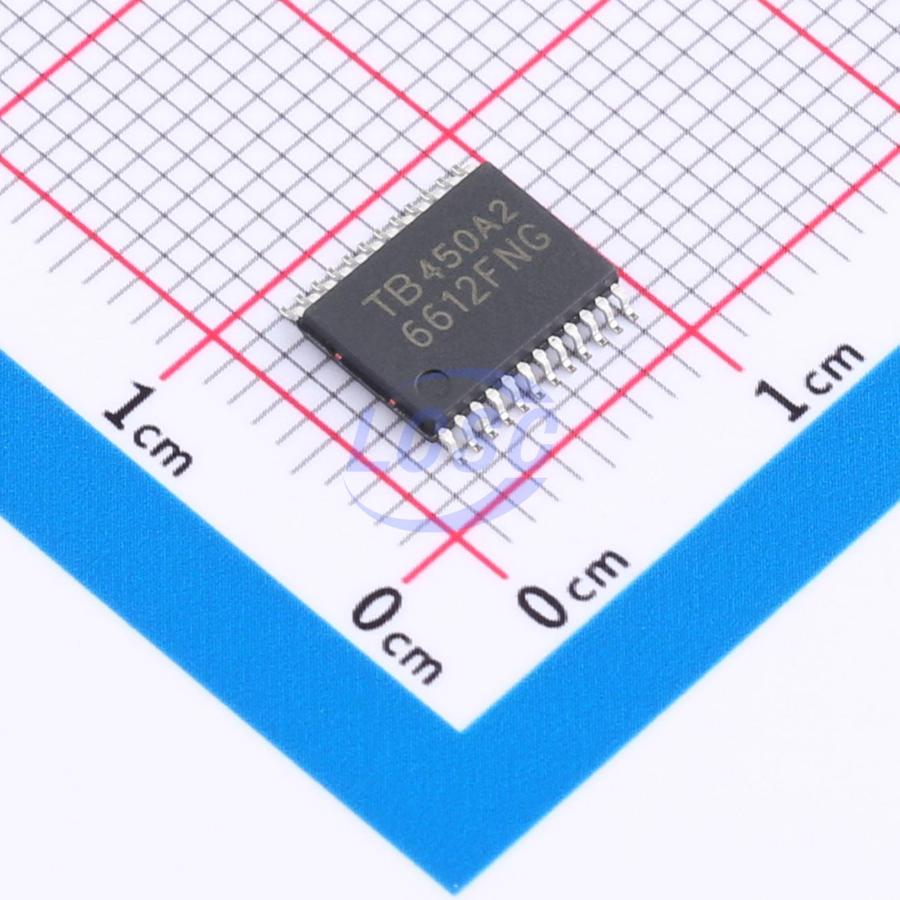

TB6612FNG(O,C,8,EL

Identity

• Manufacturer: TOSHIBA(东芝)
• Model / MPN: TB6612FNG(O,C,8,EL
• LCSC: C88224
• Category: motor-driver
• Description: TB6612FNG(O,C,8,EL dual DC motor driver IC; 2.7V5.5V; 2 H-bridges; 1A output, 3.2A peak; RDS(on) 500mΩ; Iq 1uA; -20°C+85°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface
• pwm: interface

Package And Footprint

• Package / footprint name: SSOP-24-208mil
• Pin count: 24
• EasyEDA symbol UUID: fce436eaaf814644a00678ce22af8648
• EasyEDA footprint UUID: 45938c628cbf4aa6b2ccfd20062bce5b
• EasyEDA device UUID: a69bac35c89b491fa7cc6c8b7ecd0d48
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 2.7V~5.5V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common drivers, isolation, and actuation seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/TB6612FNG(O%252CC%252C8%252CEL/89402.html
• Product URL: https://item.szlcsc.com/datasheet/TB6612FNG(O%252CC%252C8%252CEL/89402.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category motor-driver, interfaces gpio, pwm, package SSOP-24-208mil, and EasyEDA footprint UUID 45938c628cbf4aa6b2ccfd20062bce5b.

Search Keywords

seed:common-drivers-isolation-actuation, source:easyeda-bridge, iot, common-pcb, tb6612fng, dual-h-bridge, brushed-dc, stepper, low-rds-on, motor-driver, ssop-24-208mil, jlc-extended, gpio, pwm, jlc_extended, jlc-note:easyeda-jlc-verified-common-drivers-isolation-and-actuation-seed
