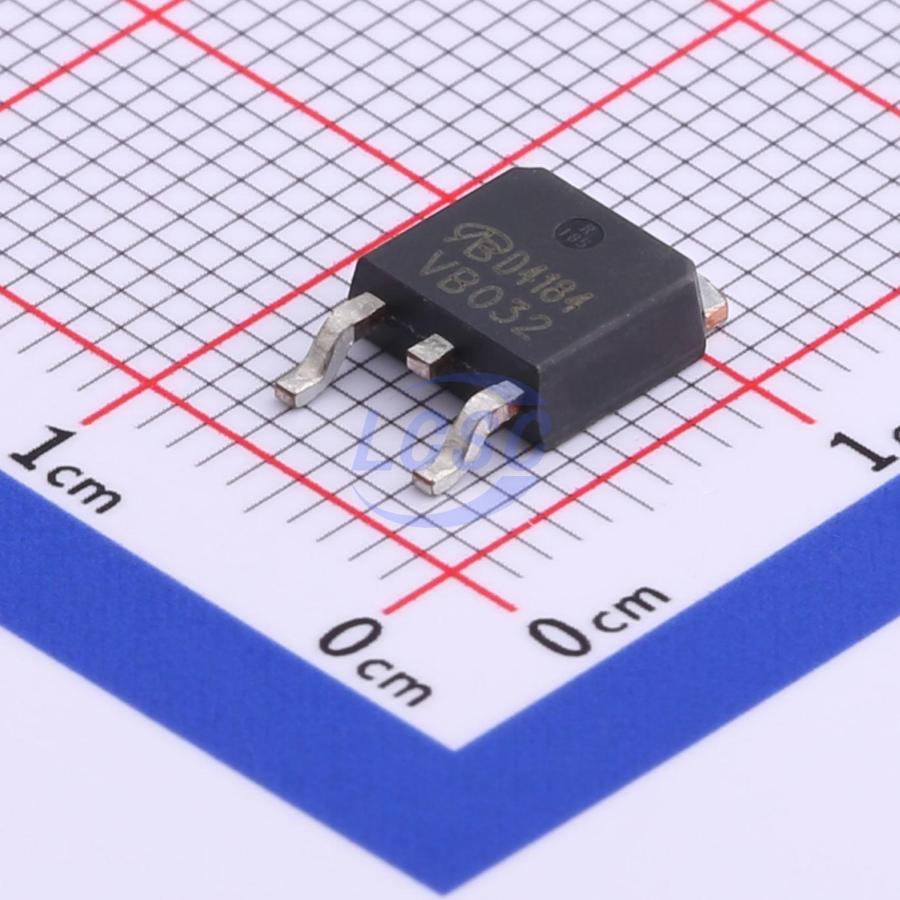

AOD4184-VB

Identity

• Manufacturer: VBsemi(微碧半导体)
• Model / MPN: AOD4184-VB
• LCSC: C879026
• Category: mosfet
• Description: AOD4184-VB single N-channel MOSFET; 40V, 85A; RDS(on) 5mΩ@10V,85A; Pd 312W; Vgs(th) 2.5V; Qg 80nC@10V; Ciss 2.38nF
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: TO-252
• Pin count: Unknown
• EasyEDA symbol UUID: 2be14c22aa27494ea632b9eece600ad3
• EasyEDA footprint UUID: fd6407fb104145a9b6aadda3add8ba2f
• EasyEDA device UUID: 9bf50e686d634622b66a8eb92c71deaa
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified automotive reverse-battery protection seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/AOD4184-VB/939001.html
• Product URL: https://item.szlcsc.com/datasheet/AOD4184-VB/939001.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category mosfet, interfaces none captured, package TO-252, and EasyEDA footprint UUID fd6407fb104145a9b6aadda3add8ba2f.

Search Keywords

seed:common-automotive-reverse-battery-protection, source:easyeda-bridge, automotive, common-pcb, power-protection, n-channel, 40v, to-252, reverse-battery-protection, ideal-diode-pair, mosfet, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-automotive-reverse-battery-protection-seed, power
