SS34

Identity

Manufacturer: MDD(辰达半导体)
Model / MPN: SS34
LCSC: C8678
Category: schottky-diode
Description: Independent Schottky diode, 40V Vr, 3A rectified current, 550mV@3A Vf, 500uA@40V leakage, -55°C~+125°C junction.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

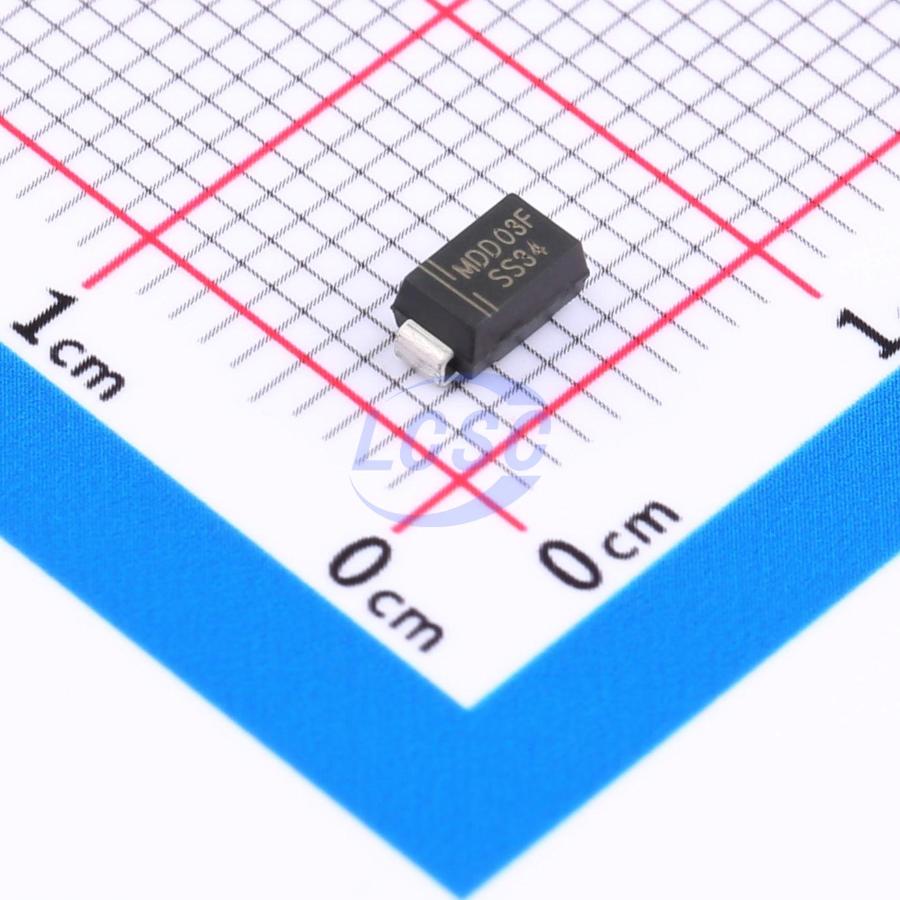

Package / footprint name: SMA(DO-214AC)
Pin count: Unknown
EasyEDA symbol UUID: 1c637798a16d4ad1bb8963874e572f9d
EasyEDA footprint UUID: 62b9c7ac34c94f47b6b3328a62c4bfa6
EasyEDA device UUID: 804240ef97df427480be2a5281ccea31
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: 40V
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Basic Part
JLC note / assembly basis: EasyEDA/JLC verified common board support, timing, EMI, and protection seed
Assembly status: jlc_basic
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/SS34/9178.html
Product URL: https://item.szlcsc.com/datasheet/SS34/9178.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category schottky-diode, interfaces none captured, package SMA(DO-214AC), and EasyEDA footprint UUID 62b9c7ac34c94f47b6b3328a62c4bfa6.
