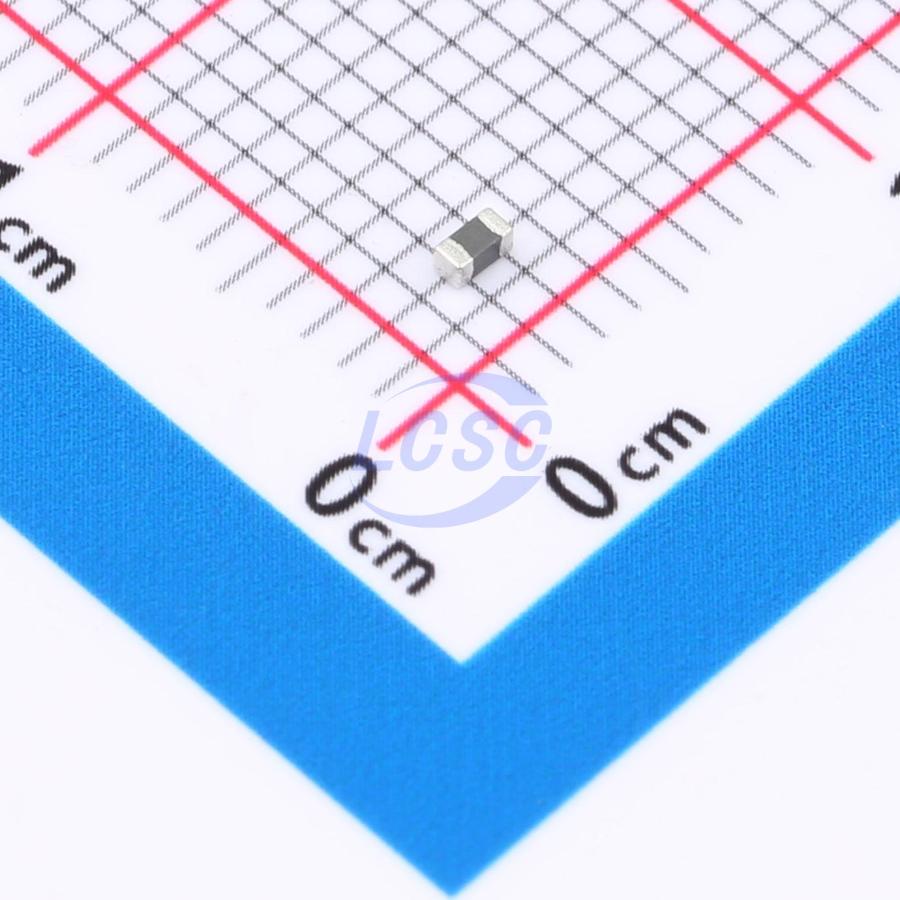

60Ω@100MHz ferrite bead

Identity

• Manufacturer: Unknown
• Model / MPN: 60Ω@100MHz ferrite bead
• LCSC: C85834
• Category: ferrite-bead
• Description: CAN bus common-mode choke/ferrite filters
• Source: Fleet telematics BOM-VERIFIED.csv
• Project designators: FB1-FB2
• Project quantity per board: 2

Capabilities

• can: interface
• cellular: interface

Package And Footprint

• Package / footprint name: L0603
• Pin count: Unknown
• EasyEDA symbol UUID: dc6c26d8680c498592e5306c8f6141f0
• EasyEDA footprint UUID: 09e51c3d45fa4661847bc360b71be6be
• EasyEDA device UUID: 207a39ad23d2416988779d688dfbbe88
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed.
• Sleep / standby current: Not characterized in seed.
• Supply rails: Not characterized in seed.
• Notes: Capture rail limits, quiescent current, and enabled/disabled states when relevant.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: Standard
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: Not captured yet.
• Product URL: Not captured yet.
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category ferrite-bead, interfaces can, cellular, package L0603, and EasyEDA footprint UUID 09e51c3d45fa4661847bc360b71be6be.

Search Keywords

seed:fleet-telematics, source:bom-verified, ferrite-bead, jlc_extended, jlc-note:standard, can, cellular
