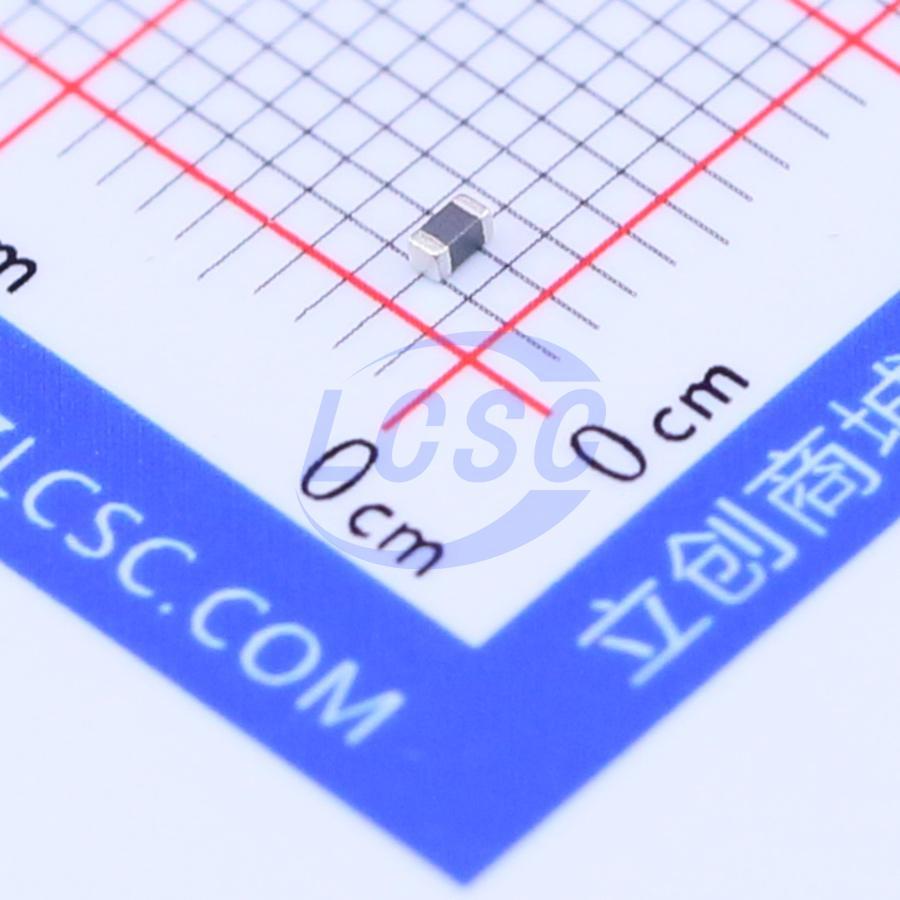

BLM18KG601SN1D

Identity

• Manufacturer: muRata(村田)
• Model / MPN: BLM18KG601SN1D
• LCSC: C85833
• Category: ferrite-bead
• Description: BLM18KG601SN1D single 0603 ferrite bead; impedance 600Ω@100MHz ±25%; DCR 150mΩ; 1.3A; 1 circuit; -55°C~+125°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: 0603
• Pin count: Unknown
• EasyEDA symbol UUID: 824842c1d68a4ae8a94c894f2abd5161
• EasyEDA footprint UUID: 09e51c3d45fa4661847bc360b71be6be
• EasyEDA device UUID: d0cc30e0360b49b4ace74ac99e861eff
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common board support, timing, EMI, and protection seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/BLM18KG601SN1D/87009.html
• Product URL: https://item.szlcsc.com/datasheet/BLM18KG601SN1D/87009.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category ferrite-bead, interfaces none captured, package 0603, and EasyEDA footprint UUID 09e51c3d45fa4661847bc360b71be6be.
