2N7002

Identity

• Manufacturer: CJ(江苏长电/长晶)
• Model / MPN: 2N7002
• LCSC: C8545
• Category: mosfet
• Description: Single N-channel MOSFET, 60V, 115mA, RDS(on):5Ω@10V, Pd:225mW, Vgs(th):2.5V, Ciss:50pF, Crss:5pF
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

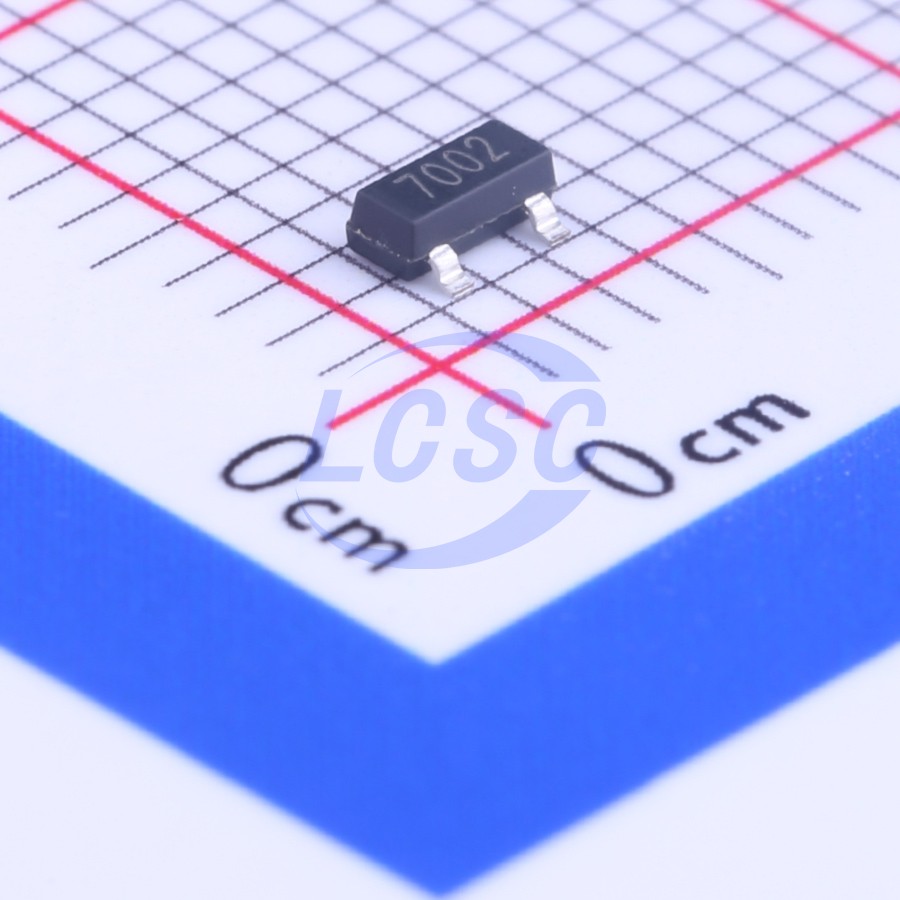

• Package / footprint name: SOT-23
• Pin count: Unknown
• EasyEDA symbol UUID: c54b0f2cd010479498e297a2985316f0
• EasyEDA footprint UUID: 18f92042a8ba46109ed61a02a6753de7
• EasyEDA device UUID: 959ea626302c4db3824cd499dc3d451b
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Basic Part
• JLC note / assembly basis: EasyEDA/JLC verified common IoT basics seed
• Assembly status: jlc_basic
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/2N7002/9040.html
• Product URL: https://item.szlcsc.com/datasheet/2N7002/9040.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category mosfet, interfaces gpio, package SOT-23, and EasyEDA footprint UUID 18f92042a8ba46109ed61a02a6753de7.
