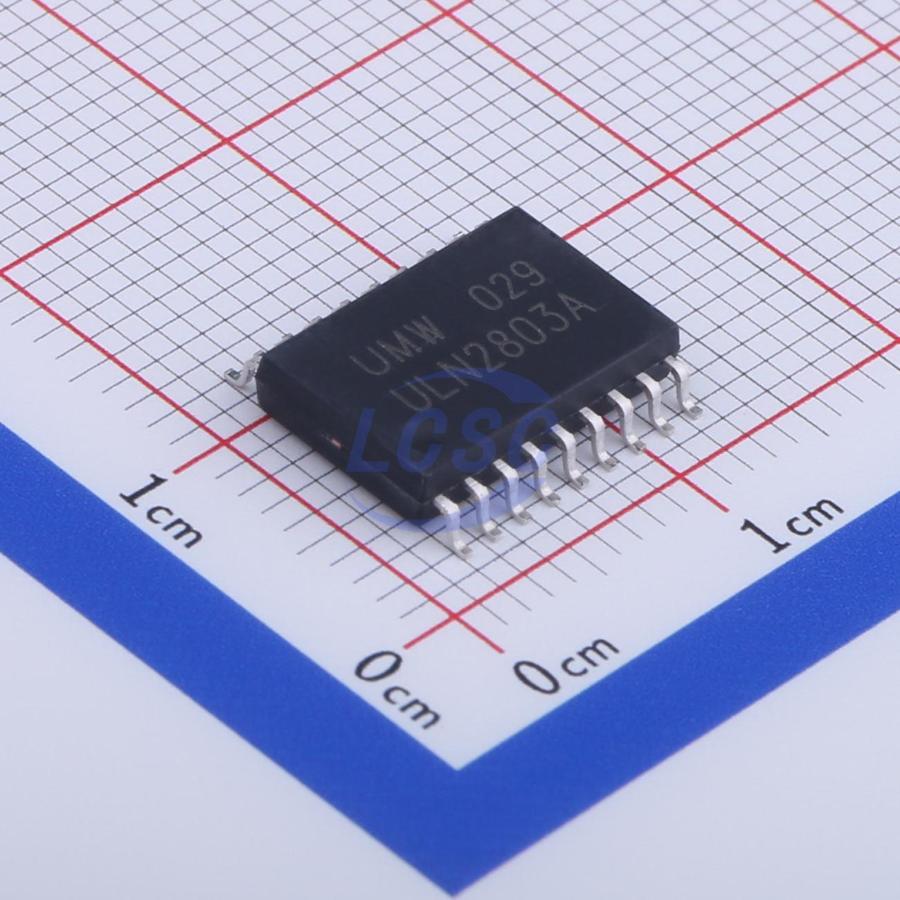

ULN2803A

Identity

• Manufacturer: UMW(友台半导体)
• Model / MPN: ULN2803A
• LCSC: C845537
• Category: darlington-driver
• Description: ULN2803A Darlington array driver IC; 8 channels; VCEO 50V; Ic 500mA; input max 30V; Icex 20uA; Iin on 0.93mA; -40°C~+85°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: SOP-18-300mil
• Pin count: 18
• EasyEDA symbol UUID: a66bb32df6a54934b2a56bea2d8e07a3
• EasyEDA footprint UUID: 77a37c3577ce4bca82d355d56fe610c5
• EasyEDA device UUID: 1077838783814e3587f35174f54736bf
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common drivers, isolation, and actuation seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/ULN2803A/905807.html
• Product URL: https://item.szlcsc.com/datasheet/ULN2803A/905807.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category darlington-driver, interfaces gpio, package SOP-18-300mil, and EasyEDA footprint UUID 77a37c3577ce4bca82d355d56fe610c5.

Search Keywords

seed:common-drivers-isolation-actuation, source:easyeda-bridge, iot, common-pcb, uln2803, low-side, relay-driver, solenoid-driver, 8-channel, darlington-driver, sop-18-300mil, jlc-extended, gpio, jlc_extended, jlc-note:easyeda-jlc-verified-common-drivers-isolation-and-actuation-seed
