NCD0805R1

Identity

Manufacturer: 国星光电
Model / MPN: NCD0805R1
LCSC: C84256
Category: led

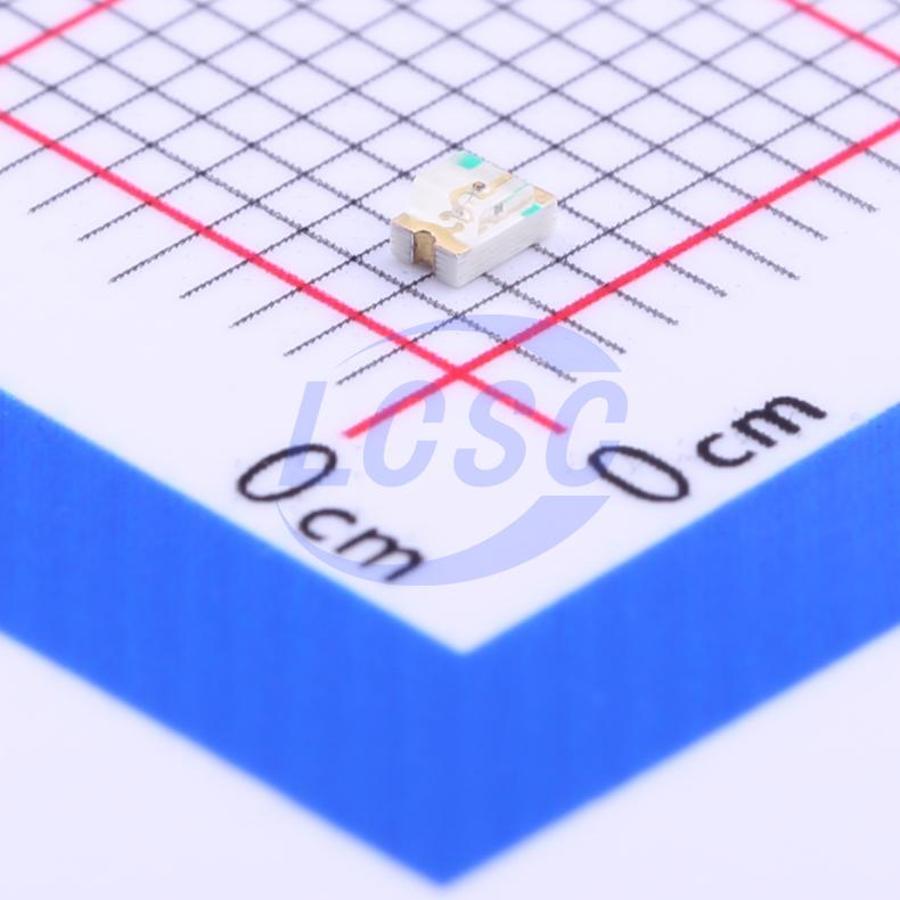

Description: NCD0805R1 chip LED; red; Vf 1.6V~~2.6V; 65mW; 25mA; dominant wavelength 615nm~~630nm; peak 630nm
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: 0805
Pin count: Unknown
EasyEDA symbol UUID: 410f2f7295d3402bb51c8b4c9b7ec614
EasyEDA footprint UUID: b88985f9c8ba44eab11d45cb6fc286fa
EasyEDA device UUID: 6073168119a941bda41c330f8b8e9152
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Basic Part
JLC note / assembly basis: EasyEDA/JLC verified common board IO, power entry, and indicator expansion seed
Assembly status: jlc_basic
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/NCD0805R1/85425.html
Product URL: https://item.szlcsc.com/datasheet/NCD0805R1/85425.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category led, interfaces none captured, package 0805, and EasyEDA footprint UUID b88985f9c8ba44eab11d45cb6fc286fa.
