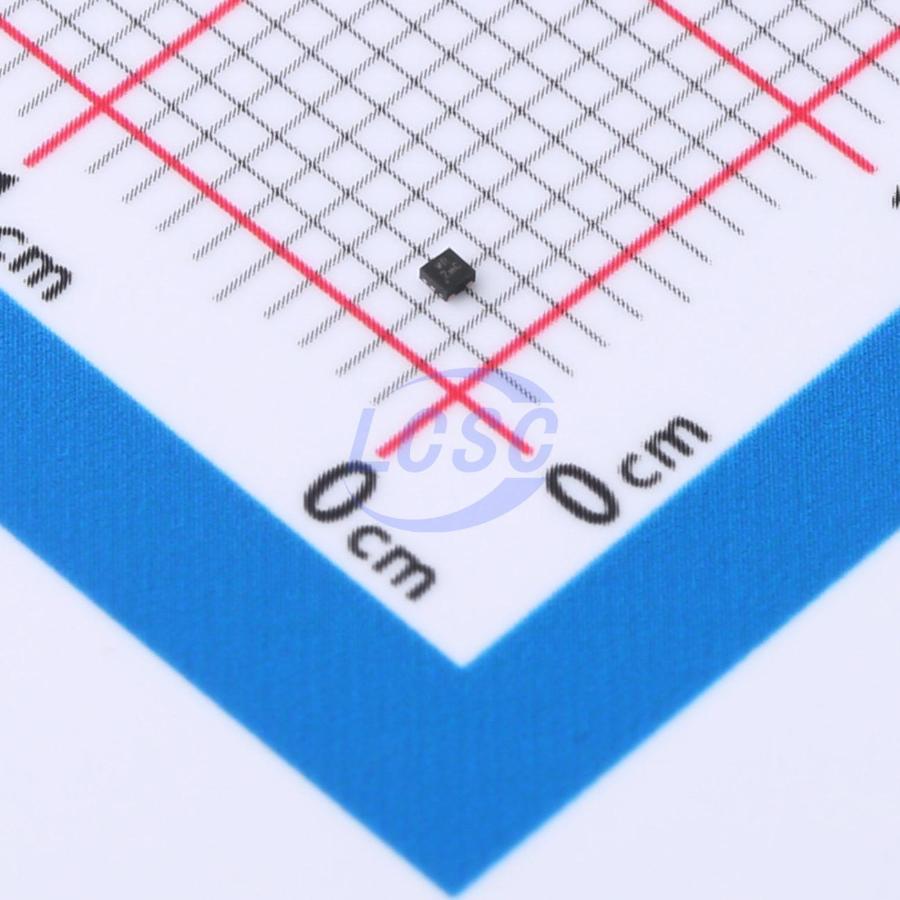

74LVC1G17FS3-7

Identity

Manufacturer: DIODES(美台)
Model / MPN: 74LVC1G17FS3-7
LCSC: C842540
Category: logic-buffer
Description: 74LVC1G17FS3-7 1.65V~~5.5V Input type:Schmitt trigger output type:Push-pull Voltage - Supply:1.65V~~5.5V Voltage - Supply:1.65V~5.5V Number of Elements:1 Number of Bits per Element:1 Channel Type:- Current - Output Low(IOL):32mA Current - Output High(IOH):32mA Logic Family:74LVC Ope
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

gpio: interface

Package And Footprint

Package / footprint name: X2-DFN0808-4-EP
Pin count: 808
EasyEDA symbol UUID: e23f00275b074ab991135bcd854d4e18
EasyEDA footprint UUID: 9425754ed2ec4b2fbb2966a8527d2735
EasyEDA device UUID: bae3b16e4b71400293a5a11ff0c73fb5
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 1.65V~5.5V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common logic, level-shifting, bus-interface, and analog-switch seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/74LVC1G17FS3-7/900871.html
Product URL: https://item.szlcsc.com/datasheet/74LVC1G17FS3-7/900871.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: single-signal buffering, edge cleanup, simple fanout, and fixed-direction logic-level interfaces
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category logic-buffer, interfaces gpio, package X2-DFN0808-4-EP, and EasyEDA footprint UUID 9425754ed2ec4b2fbb2966a8527d2735.

Search Keywords

seed:common-logic-interface-glue, source:easyeda-bridge, iot, common-pcb, logic, interface, glue, 74lvc1g17, single-schmitt-buffer, tiny-logic, debounce, logic-buffer, x2-dfn0808-4-ep, jlc-extended, gpio, jlc_extended, jlc-note:easyeda-jlc-verified-common-logic-level-shifting-bus-interface-and-analog-switch-seed
