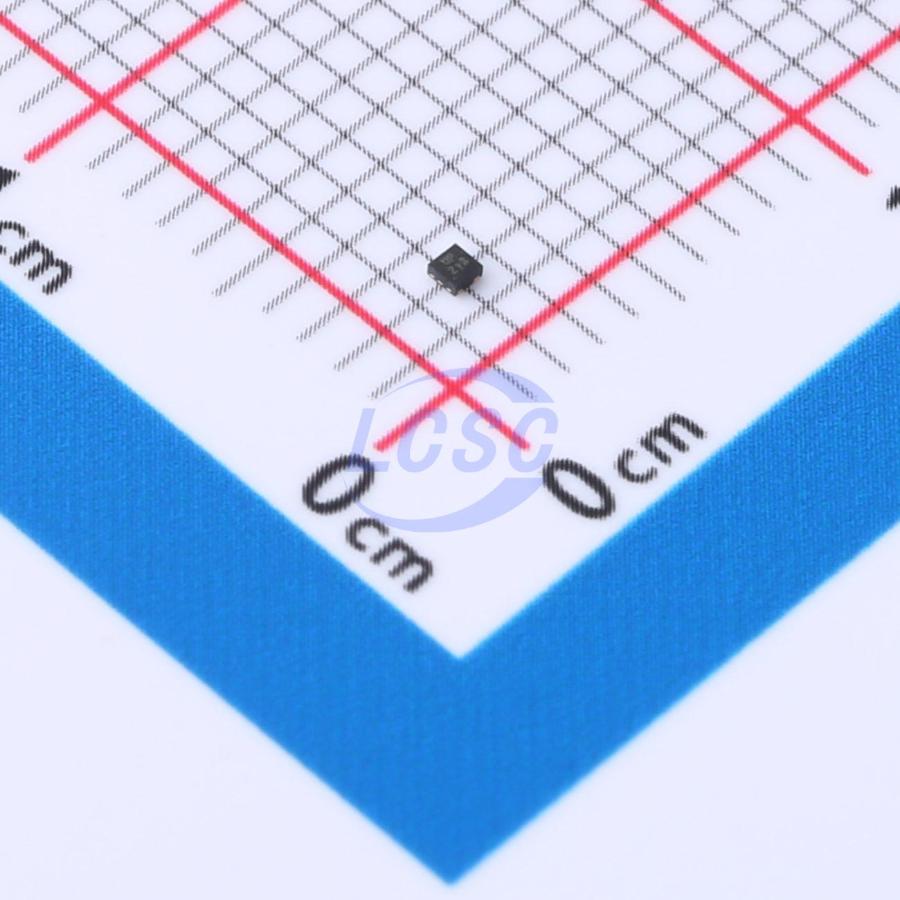

74LVC1G14FS3-7

Identity

• Manufacturer: DIODES(美台)
• Model / MPN: 74LVC1G14FS3-7
• LCSC: C842539
• Category: schmitt-trigger
• Description: 74LVC1G14FS3-7 1.65V5.5V Input Type:Schmitt trigger Voltage - Supply:1.65V5.5V Voltage - Supply:1.65V5.5V Quiescent Current(Iq):10uA Number of Circuits:1 Number of Inputs:1 Current - Output Low(IOL):32mA Current - Output High(IOH):32mA Input Logic Level - High:1.2V3.33V Input
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: X2-DFN0808-4
• Pin count: 808
• EasyEDA symbol UUID: d0fdbdd95b4c4497a950343673c5da9f
• EasyEDA footprint UUID: 9425754ed2ec4b2fbb2966a8527d2735
• EasyEDA device UUID: edbd24990b4c412fa98d6c9fb7f90e01
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 1.65V~5.5V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common logic, level-shifting, bus-interface, and analog-switch seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/74LVC1G14FS3-7/900870.html
• Product URL: https://item.szlcsc.com/datasheet/74LVC1G14FS3-7/900870.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: button debounce, slow-edge cleanup, RC timing, sensor threshold conditioning, and simple oscillator circuits
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category schmitt-trigger, interfaces gpio, package X2-DFN0808-4, and EasyEDA footprint UUID 9425754ed2ec4b2fbb2966a8527d2735.

Search Keywords

seed:common-logic-interface-glue, source:easyeda-bridge, iot, common-pcb, logic, interface, glue, 74lvc1g14, single-schmitt-inverter, tiny-logic, debounce, schmitt-trigger, x2-dfn0808-4, jlc-extended, gpio, jlc_extended, jlc-note:easyeda-jlc-verified-common-logic-level-shifting-bus-interface-and-analog-switch-seed
