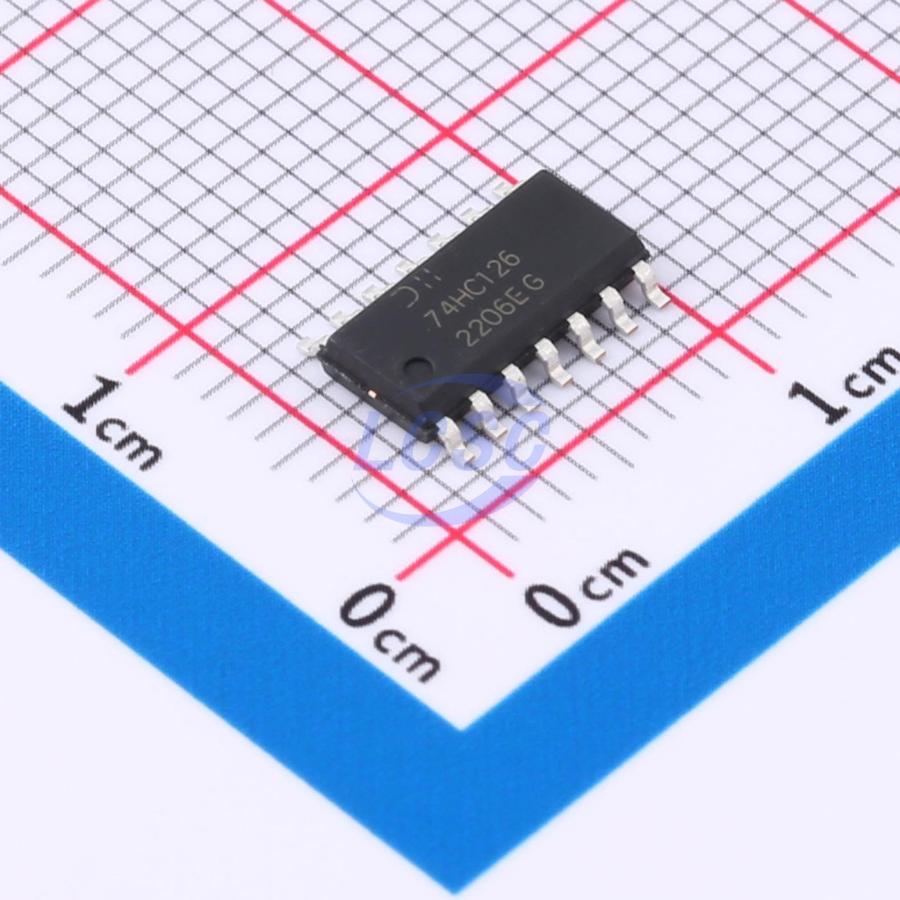

74HC126S14-13

Identity

Manufacturer: DIODES(美台)
Model / MPN: 74HC126S14-13
LCSC: C842426
Category: tri-state-buffer
Description: 74HC126S14-13 2V~~6V Input type:Schmitt trigger output type:Tri-State Voltage - Supply:2V~~6V Voltage - Supply:2V~6V Number of Elements:4 Number of Bits per Element:1 Channel Type:- Current - Output Low(IOL):5.2mA Current - Output High(IOH):5.2mA Logic Family:74HC Operating Te
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

gpio: interface

Package And Footprint

Package / footprint name: SO-14
Pin count: Unknown
EasyEDA symbol UUID: 506e5b27c77242baa98a81b3fc80b9e4
EasyEDA footprint UUID: 16c6f40c8d0d477bb5312ad0ce35a7d3
EasyEDA device UUID: dc7b1ffd174a42c8877e0da372cfb406
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 2V~6V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common logic, level-shifting, bus-interface, and analog-switch seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/74HC126S14-13/900757.html
Product URL: https://item.szlcsc.com/datasheet/74HC126S14-13/900757.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: shared digital buses, output-enable isolation, level-safe fanout, and selectable signal drive
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category tri-state-buffer, interfaces gpio, package SO-14, and EasyEDA footprint UUID 16c6f40c8d0d477bb5312ad0ce35a7d3.

Search Keywords

seed:common-logic-interface-glue, source:easyeda-bridge, iot, common-pcb, logic, interface, glue, 74hc126, quad-buffer, three-state, output-enable, tri-state-buffer, so-14, jlc-extended, gpio, jlc_extended, jlc-note:easyeda-jlc-verified-common-logic-level-shifting-bus-interface-and-analog-switch-seed
