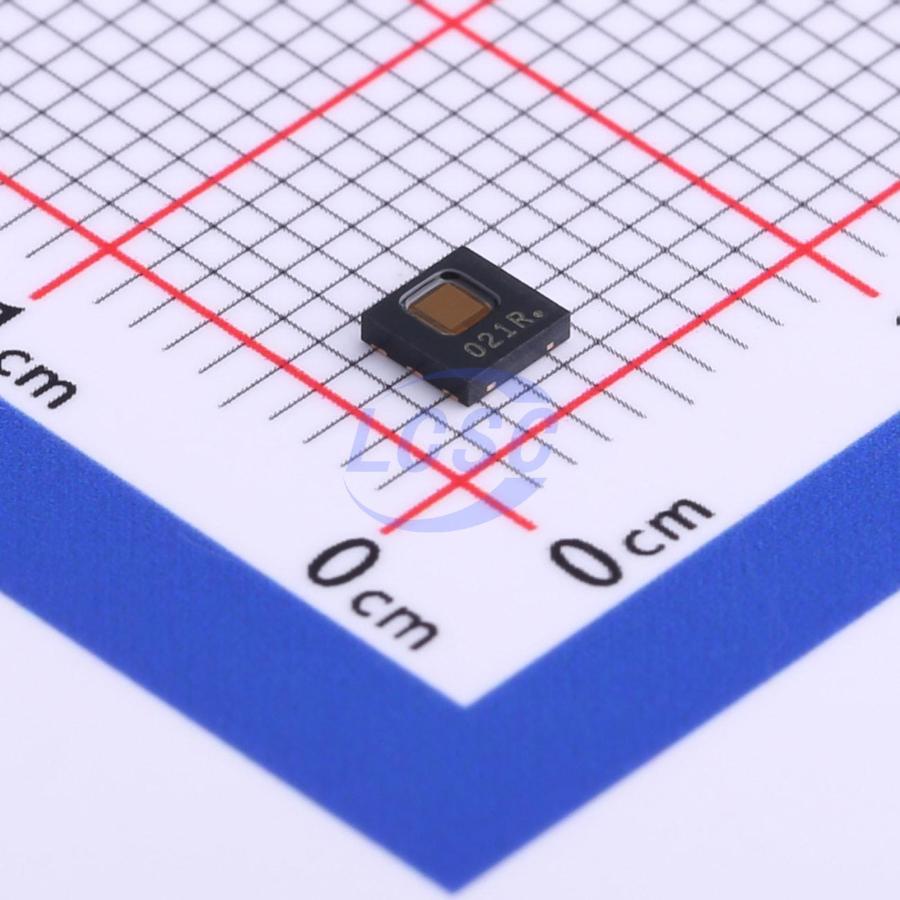

HDC1080DMBR

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: HDC1080DMBR
• LCSC: C82227
• Category: environment-sensor
• Description: HDC1080DMBR 2.7V5.5V I2C Temperature Range:-40℃+125℃ Temperature Range:-40℃+125℃ Humidity:0%RH100%RH Humidity:0%RH100%RH Interface:I2C Voltage - Supply:2.7V5.5V Voltage - Supply:2.7V~5.5V Current - Supply:1.3uA Humidity Tolerance:±2%RH Humidity Tolerance:±2%RH Temperature To
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

• Package / footprint name: WSON-6(3x3)
• Pin count: Unknown
• EasyEDA symbol UUID: c004563bb10f4a1cacd3adb9b00fb0c7
• EasyEDA footprint UUID: 9bc0918056d544c3b45aca303b129c1f
• EasyEDA device UUID: 2b462ea70293473f9e73f167306746a2
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: EasyEDA property: 1.3uA.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 2.7V~5.5V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common environment, motion, light, proximity, and temperature sensor seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/hdc1080
• Product URL: https://www.ti.com/cn/lit/gpn/hdc1080
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: temperature, humidity, pressure, VOC, weather, enclosure health, comfort, and environmental telemetry nodes
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category environment-sensor, interfaces i2c, package WSON-6(3x3), and EasyEDA footprint UUID 9bc0918056d544c3b45aca303b129c1f.
