SX1276IMLTRT

Identity

Manufacturer: SEMTECH
Model / MPN: SX1276IMLTRT
LCSC: C80171
Category: lora-transceiver
Description: Low-power long-range LoRa transceiver, SPI, 1.8V~~3.7V, 137MHz~~1.02GHz, 20dBm, 300Kbps, 20mA TX, -148dBm sensitivity.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

spi: interface

Package And Footprint

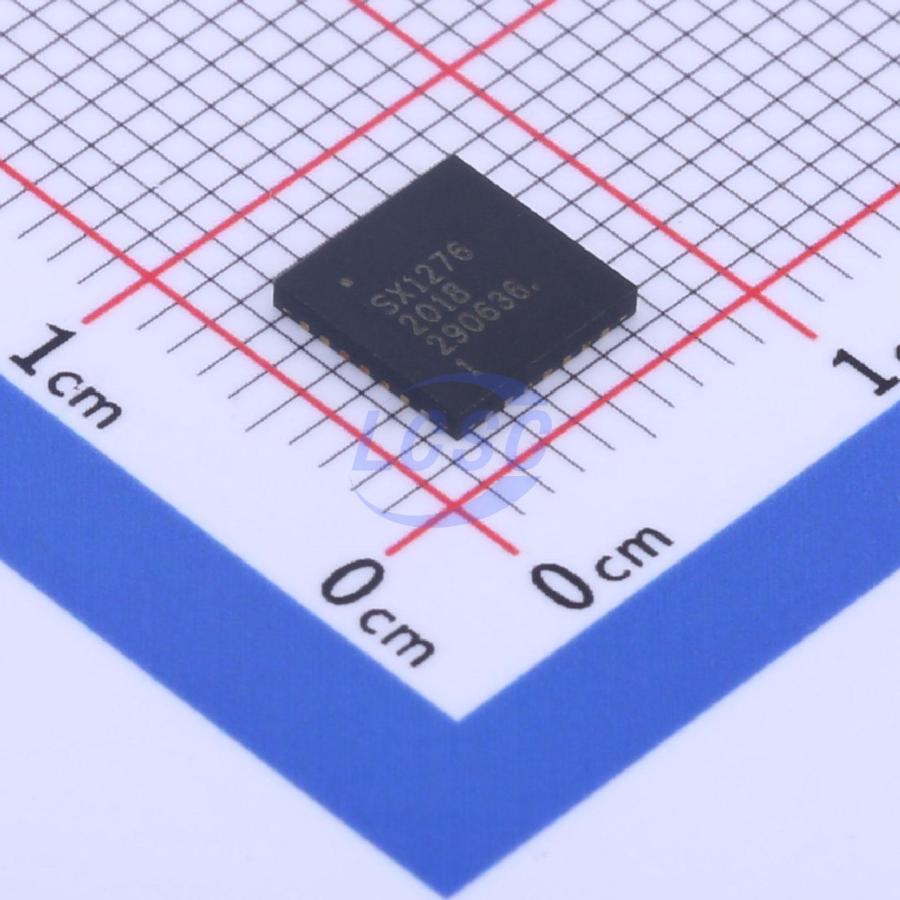

Package / footprint name: QFN-28-EP(6x6)
Pin count: 28
EasyEDA symbol UUID: eced2449c8d84af18199d2e03e21796b
EasyEDA footprint UUID: 344c1b3df07541269ed0ddec37e71857
EasyEDA device UUID: 41ba2112d59041b5a2505e47931db25e
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: EasyEDA property: 10.8mA.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 1.8V~3.7V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connectivity, positioning, and RF interface seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/SX1276IMLTRT/81316.html
Product URL: https://item.szlcsc.com/datasheet/SX1276IMLTRT/81316.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category lora-transceiver, interfaces spi, package QFN-28-EP(6x6), and EasyEDA footprint UUID 344c1b3df07541269ed0ddec37e71857.
