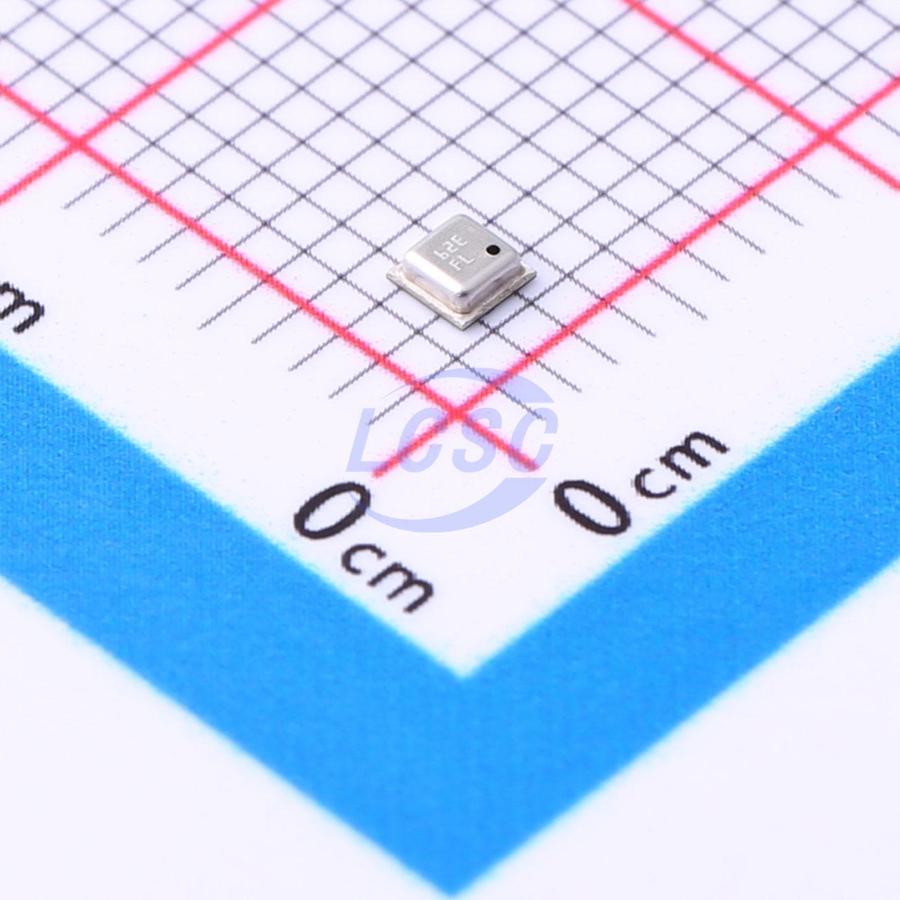

BMP388

Identity

• Manufacturer: Bosch(博世)
• Model / MPN: BMP388
• LCSC: C779278
• Category: pressure-sensor
• Description: Digital pressure sensor, 1.65V3.6V, SPI/I2C, 30Kpa1.25bar, 2uA standby, 50pa absolute accuracy, 8pa relative accuracy
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface
• spi: interface

Package And Footprint

• Package / footprint name: LGA-10(2x2)
• Pin count: 10
• EasyEDA symbol UUID: e53a81d4a6264607957e0619a0e9f9ef
• EasyEDA footprint UUID: 413db6262136481f83c76007c23d850d
• EasyEDA device UUID: 312bbd345dda44bb83b90138505eac4f
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: EasyEDA property: 2uA.
• Supply rails: EasyEDA property: 1.65V~3.6V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common environment, motion, light, proximity, and temperature sensor seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/BMP388/828796.html
• Product URL: https://item.szlcsc.com/datasheet/BMP388/828796.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: barometric pressure, altitude estimation, weather logging, enclosure pressure checks, and low-power environmental telemetry
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category pressure-sensor, interfaces i2c, spi, package LGA-10(2x2), and EasyEDA footprint UUID 413db6262136481f83c76007c23d850d.
