TF-CARD H1.8

Identity

Manufacturer: SHOU HAN(首韩)
Model / MPN: TF-CARD H1.8
LCSC: C7529389
Category: memory-card-connector

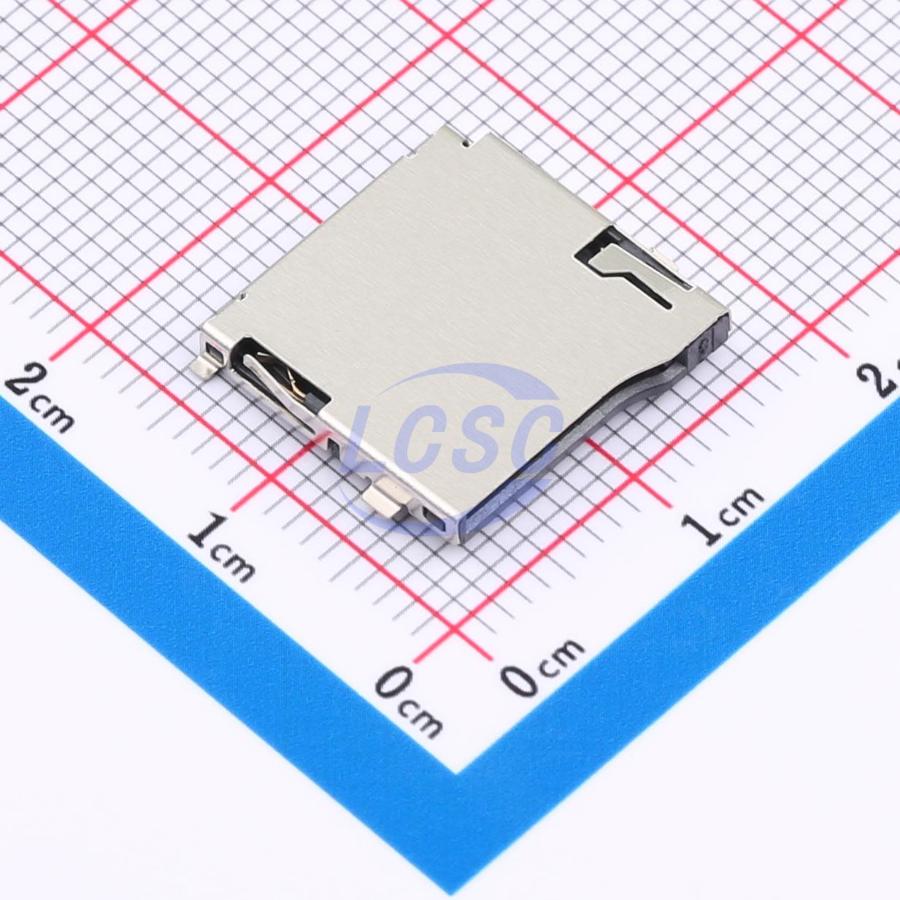

Description: 9P push-push MicroSD Card (TF Card) connector with ejector, 1.8mm height above board, -40°C~+70°C.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

spi: interface
sdio: interface

Package And Footprint

Package / footprint name: SMD
Pin count: Unknown
EasyEDA symbol UUID: 1fcc4c9e540b48839cf1da9d723aa9ae
EasyEDA footprint UUID: 087d2372238d46ada55ca50be7ef2c9c
EasyEDA device UUID: d85495e2c6c643b487afbde1abd09da8
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common memory, timing, storage, and security seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/TF-CARD%2520H1.8/8629776.html
Product URL: https://item.szlcsc.com/datasheet/TF-CARD%2520H1.8/8629776.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: removable logging, field data export, firmware images, SDIO storage, and SPI-mode microSD/SD card designs
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category memory-card-connector, interfaces spi, sdio, package SMD, and EasyEDA footprint UUID 087d2372238d46ada55ca50be7ef2c9c.
