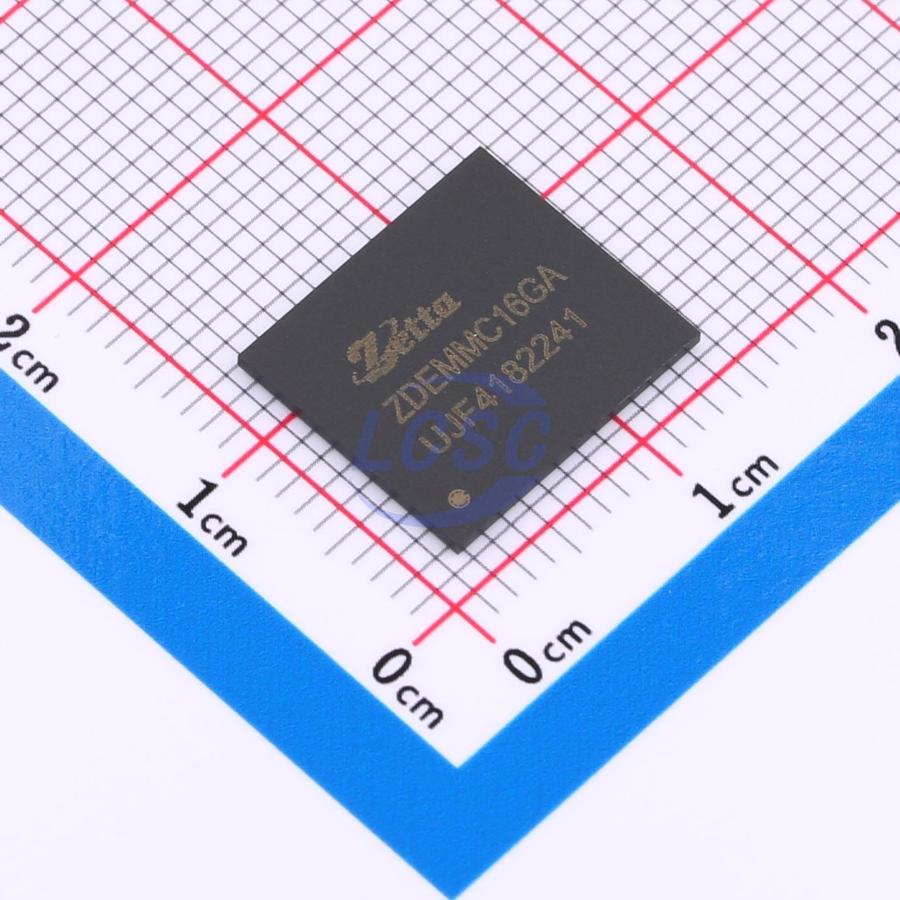

ZDEMMC16GA

Identity

• Manufacturer: Zetta(澜智)
• Model / MPN: ZDEMMC16GA
• LCSC: C7501401
• Category: emmc-storage
• Description: ZDEMMC16GA eMMC embedded storage solution; eMMC 5.1; 16GB; BGA; read 250MB/S, write 90MB/S; VCCF 2.7V3.6V; -25°C+85°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• emmc: interface

Package And Footprint

• Package / footprint name: FBGA-153
• Pin count: Unknown
• EasyEDA symbol UUID: 70182c92bb0043269829cb7f7bca1190
• EasyEDA footprint UUID: 6d37ab9ad82d44579bcacf95a423343f
• EasyEDA device UUID: 2e5023e6e9744138bfe85abb762e9f30
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common memory, timing, storage, and security seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/ZDEMMC16GA/8583677.html
• Product URL: https://item.szlcsc.com/datasheet/ZDEMMC16GA/8583677.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: soldered mass storage for Linux-capable modules, large logs, media, maps, and high-capacity embedded filesystems
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category emmc-storage, interfaces emmc, package FBGA-153, and EasyEDA footprint UUID 6d37ab9ad82d44579bcacf95a423343f.
