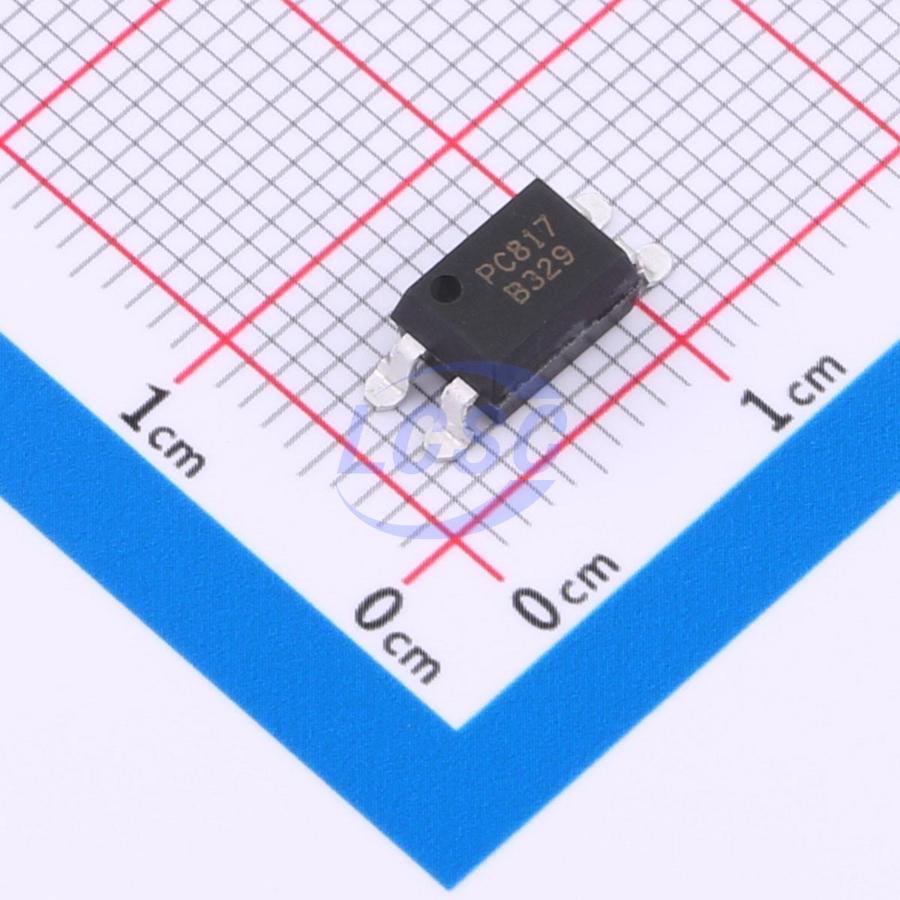

PC817B-MS

Identity

• Manufacturer: MSKSEMI(美森科)
• Model / MPN: PC817B-MS
• LCSC: C7472815
• Category: optocoupler
• Description: PC817B-MS Input type:DC Output Type:Phototransistor Voltage - Forward(Vf):1.2V Output Current:- Isolation Voltage(Vrms):5kV Reverse Voltage:6V Load Voltage:35V Number of Outputs:- Vce Saturation(VCE(sat)):200mV@20mA,1mA Rise time:6us Fall time:5us Operating Tempera
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: SOP-4
• Pin count: 4
• EasyEDA symbol UUID: 8dad2b9e79c8415bb4e77a68917ea212
• EasyEDA footprint UUID: 8c12fa2b28da4f2c8004120be79a04b3
• EasyEDA device UUID: 015837edab27415b94074c5a43f6edc2
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common drivers, isolation, and actuation seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/PC817B-MS/8533735.html
• Product URL: https://item.szlcsc.com/datasheet/PC817B-MS/8533735.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category optocoupler, interfaces gpio, package SOP-4, and EasyEDA footprint UUID 8c12fa2b28da4f2c8004120be79a04b3.
