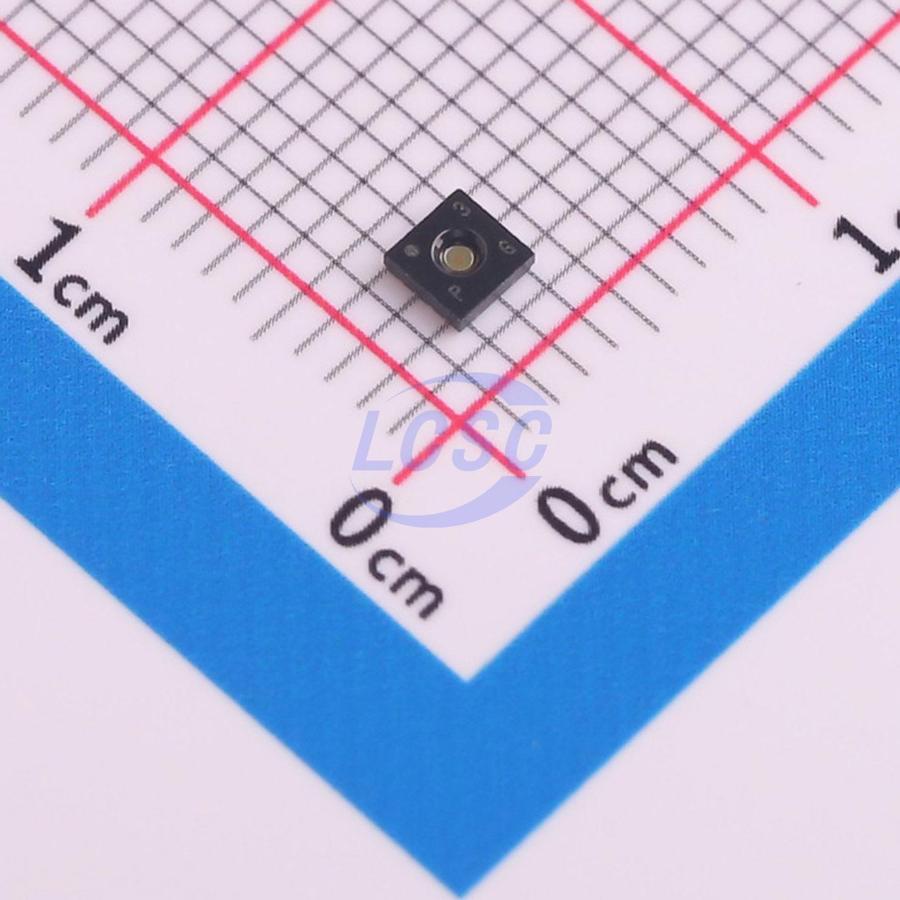

HDC3020DEFR

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: HDC3020DEFR
• LCSC: C7472806
• Category: environment-sensor
• Description: HDC3020DEFR
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

• Package / footprint name: WSON-8(2.5x2.5)
• Pin count: Unknown
• EasyEDA symbol UUID: 6ee7b29b923c40ac8df024cc5c5f38f4
• EasyEDA footprint UUID: 398c3cb643b148dbb226e4c29ed2a48c
• EasyEDA device UUID: b8be7ed11a2c4b97b37d070fc7877b25
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common environment, motion, light, proximity, and temperature sensor seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/HDC3020DEFR/8533357.html
• Product URL: https://item.szlcsc.com/datasheet/HDC3020DEFR/8533357.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: temperature, humidity, pressure, VOC, weather, enclosure health, comfort, and environmental telemetry nodes
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category environment-sensor, interfaces i2c, package WSON-8(2.5x2.5), and EasyEDA footprint UUID 398c3cb643b148dbb226e4c29ed2a48c.
