MAX4466EXK+T

Identity

• Manufacturer: ADI(亚德诺)/MAXIM(美信)
• Model / MPN: MAX4466EXK+T
• LCSC: C7456762
• Category: microphone-preamp
• Description: Low-cost micropower SC70/SOT23-8 microphone preamplifier with shutdown, 2.4V~5.5V, 1-Channel, THD+N:0.03%, Iq:24uA, PSRR:112dB
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• analog: interface

Package And Footprint

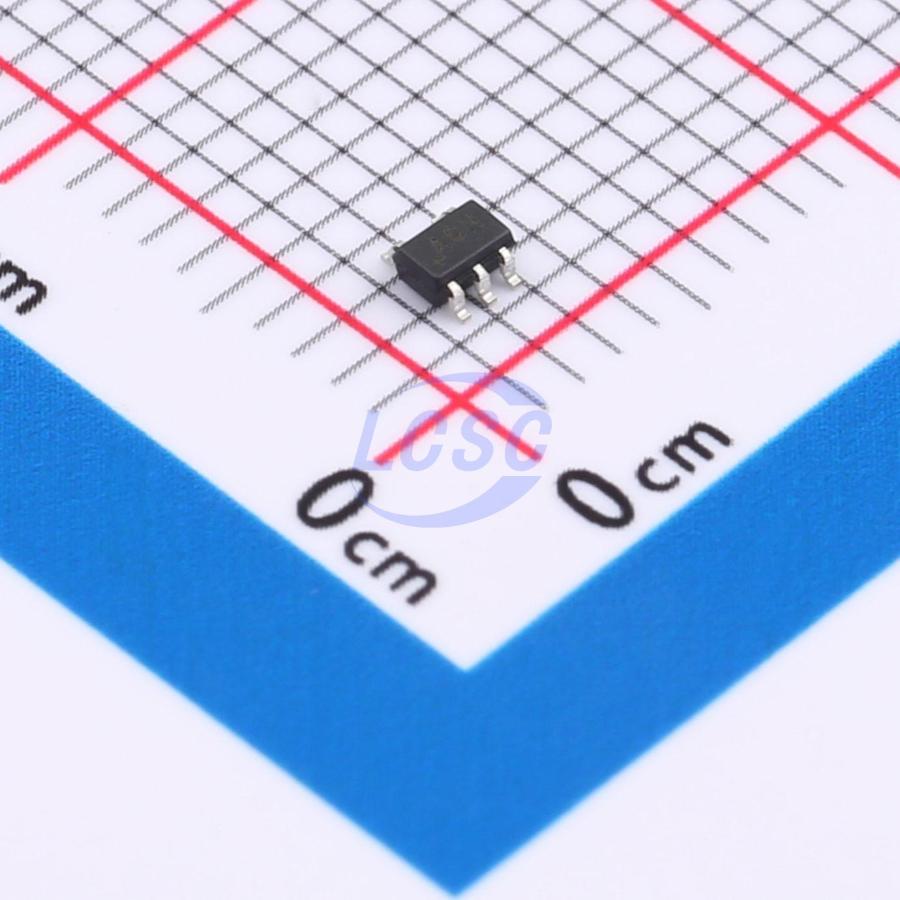

• Package / footprint name: SC-70-5
• Pin count: 5
• EasyEDA symbol UUID: 1e5b475a3d4b40808a8440bd4ebf0a0b
• EasyEDA footprint UUID: 03877627f23a4a83b93ddd89db575686
• EasyEDA device UUID: c34621550a374c95aeea5b700076b734
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 2.4V~5.5V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common HMI, display, audio, touch, and haptic seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/MAX4466EXK%252BT/8482791.html
• Product URL: https://item.szlcsc.com/datasheet/MAX4466EXK%252BT/8482791.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: audio capture, voice triggers, noise monitoring, acoustic telemetry, and microphone front ends
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category microphone-preamp, interfaces analog, package SC-70-5, and EasyEDA footprint UUID 03877627f23a4a83b93ddd89db575686.
