AT42QT1010-TSHR

Identity

• Manufacturer: MICROCHIP(美国微芯)
• Model / MPN: AT42QT1010-TSHR
• LCSC: C74512
• Category: capacitive-touch-controller
• Description: Digital burst-mode charge-transfer proximity/touch sensor, 1 channel, 1.8V5.5V supply, 729uA supply, 16.5uA standby, -40°C+85°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

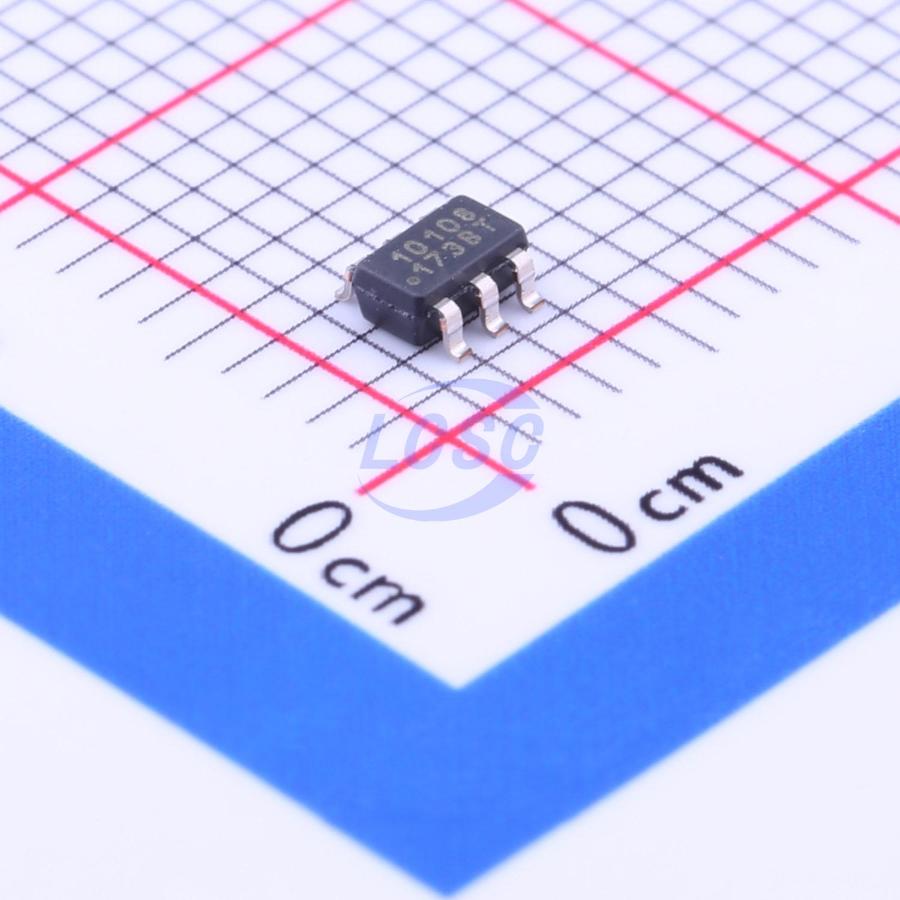

• Package / footprint name: SOT-23-6
• Pin count: 6
• EasyEDA symbol UUID: aebe39d0b2f84416badc9f38ae810eea
• EasyEDA footprint UUID: ebc5370dc87d4461ad5320a48450ab14
• EasyEDA device UUID: 0a765edbebf6431188aab2b2c88b6d42
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: EasyEDA property: 729uA.
• Sleep / standby current: EasyEDA property: 16.5uA.
• Supply rails: EasyEDA property: 1.8V~5.5V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common HMI, display, audio, touch, and haptic seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/AT42QT1010-TSHR/75634.html
• Product URL: https://item.szlcsc.com/datasheet/AT42QT1010-TSHR/75634.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: sealed HMI controls, touch buttons, touch panels, wake inputs, and low-profile user interfaces
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category capacitive-touch-controller, interfaces gpio, package SOT-23-6, and EasyEDA footprint UUID ebc5370dc87d4461ad5320a48450ab14.
