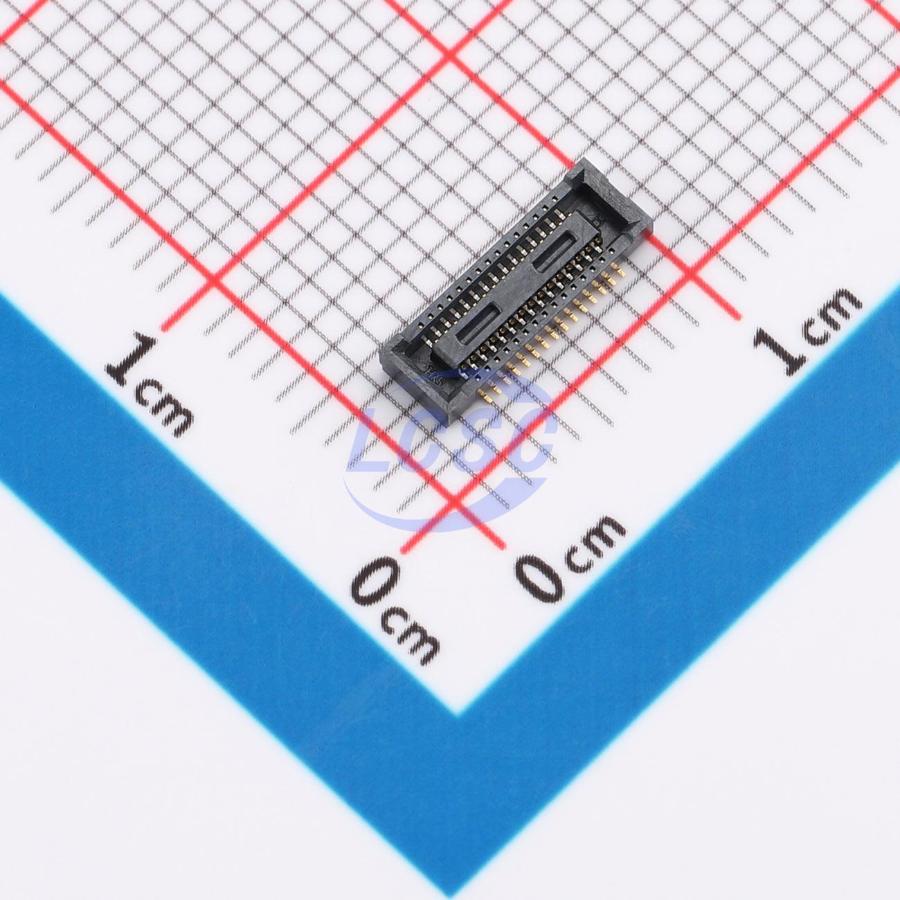

DF40C-30DS-0.4V(58)
Identity
- Manufacturer: HRS(广濑)
- Model / MPN: DF40C-30DS-0.4V(58)
- LCSC: C7265089
- Category: board-to-board-connector
- Description: 30P 0.4mm vertical SMT board-to-board connector, 30V, 2 rows, 300mA, Slot Type Butting, gold plating, -35°C~+85°C
- Source: EasyEDA/JLC verified common component seed
- Project designators: Not project-specific
- Project quantity per board: Not project-specific
Capabilities
- mezzanine: interface
Package And Footprint
- Package / footprint name: SMD,P=0.4mm
- Pin count: Unknown
- EasyEDA symbol UUID: dca97fdf55d34d25948c2d6903f7b52b
- EasyEDA footprint UUID: 9f18ae88d619415387e04b67db5c323a
- EasyEDA device UUID: 13b1e58d060b4130870f538be1e98aef
- EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87
Power And Operating Modes
- Active current: Passive part; no quiescent current.
- Sleep / standby current: Passive part; no quiescent current.
- Supply rails: 30V
- Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.
Procurement Classification
- JLC class: Extended Part
- JLC note / assembly basis: EasyEDA/JLC verified common debug headers, FPC/mezzanine connectors, field wiring terminals, and fuse seed
- Assembly status: jlc_extended
- Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
- Live stock: intentionally not stored as durable selection data; refresh externally before ordering.
Datasheet And Links
- Datasheet / product URL: https://item.szlcsc.com/datasheet/DF40C-30DS-0.4V(58)/8233945.html
- Product URL: https://item.szlcsc.com/datasheet/DF40C-30DS-0.4V(58)/8233945.html
- Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.
Selection Notes
- Good for: mezzanine stacking, daughtercards, radio/modem modules, display boards, and compact board-to-board expansion
- Avoid when: Not captured yet.
- Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
- Equivalent search hints: match category
board-to-board-connector, interfaces mezzanine, packageSMD,P=0.4mm, and EasyEDA footprint UUID9f18ae88d619415387e04b67db5c323a.
