IRF9540STRLPBF

Identity

• Manufacturer: VISHAY(威世)
• Model / MPN: IRF9540STRLPBF
• LCSC: C7211044
• Category: p-channel-mosfet
• Description: IRF9540STRLPBF single P-channel MOSFET; 100V, 19A; RDS(on) 200mΩ@10V,11A; Pd 3.7W/150W; Vgs(th) 4V; Qg 61nC@10V; Ciss 1.4nF@25V
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

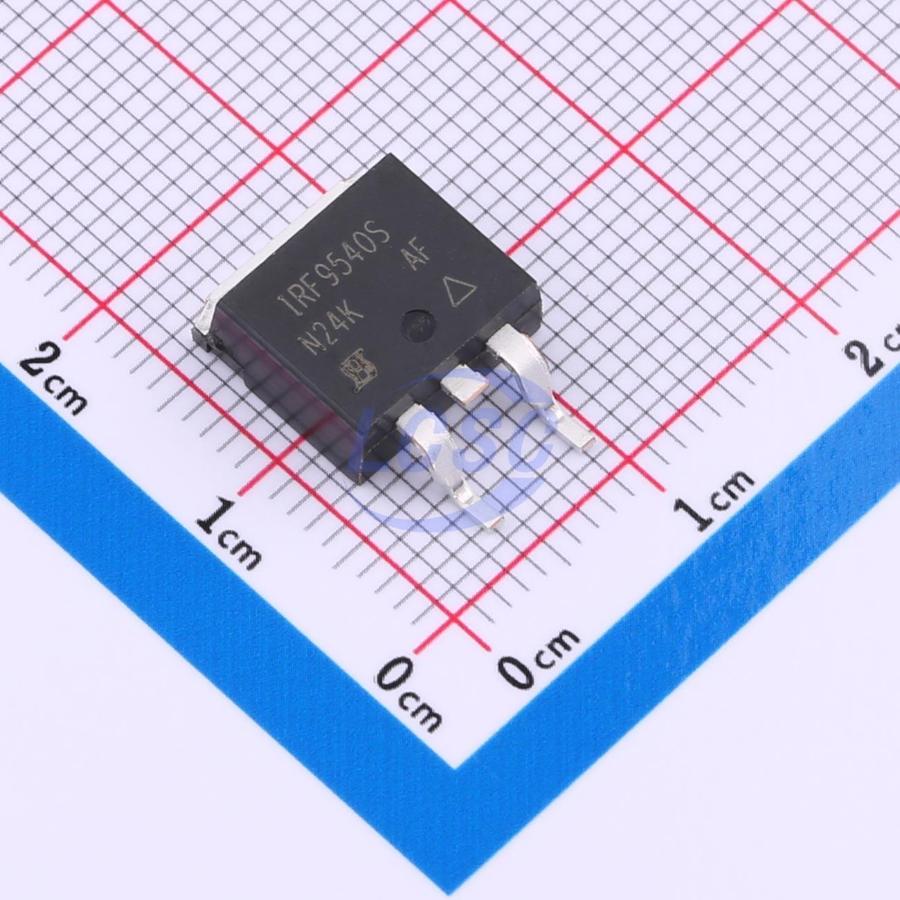

• Package / footprint name: D2PAK(TO-263)
• Pin count: Unknown
• EasyEDA symbol UUID: e417543c1dec428d8b23c3bae1daba6a
• EasyEDA footprint UUID: ee9c86d8293c45b781fef4d59e791cb2
• EasyEDA device UUID: 53b517a4e4944ea8845867d6a0075d1f
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified automotive reverse-battery protection seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/IRF9540STRLPBF/8179376.html
• Product URL: https://item.szlcsc.com/datasheet/IRF9540STRLPBF/8179376.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category p-channel-mosfet, interfaces none captured, package D2PAK(TO-263), and EasyEDA footprint UUID ee9c86d8293c45b781fef4d59e791cb2.

Search Keywords

seed:common-automotive-reverse-battery-protection, source:easyeda-bridge, automotive, common-pcb, power-protection, 100v, d2pak-to-263, high-side, reverse-protection, p-channel-mosfet, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-automotive-reverse-battery-protection-seed, power
