TS-1088-AR02016

Identity

• Manufacturer: XUNPU(讯普)
• Model / MPN: TS-1088-AR02016
• LCSC: C720477
• Category: tactile-switch

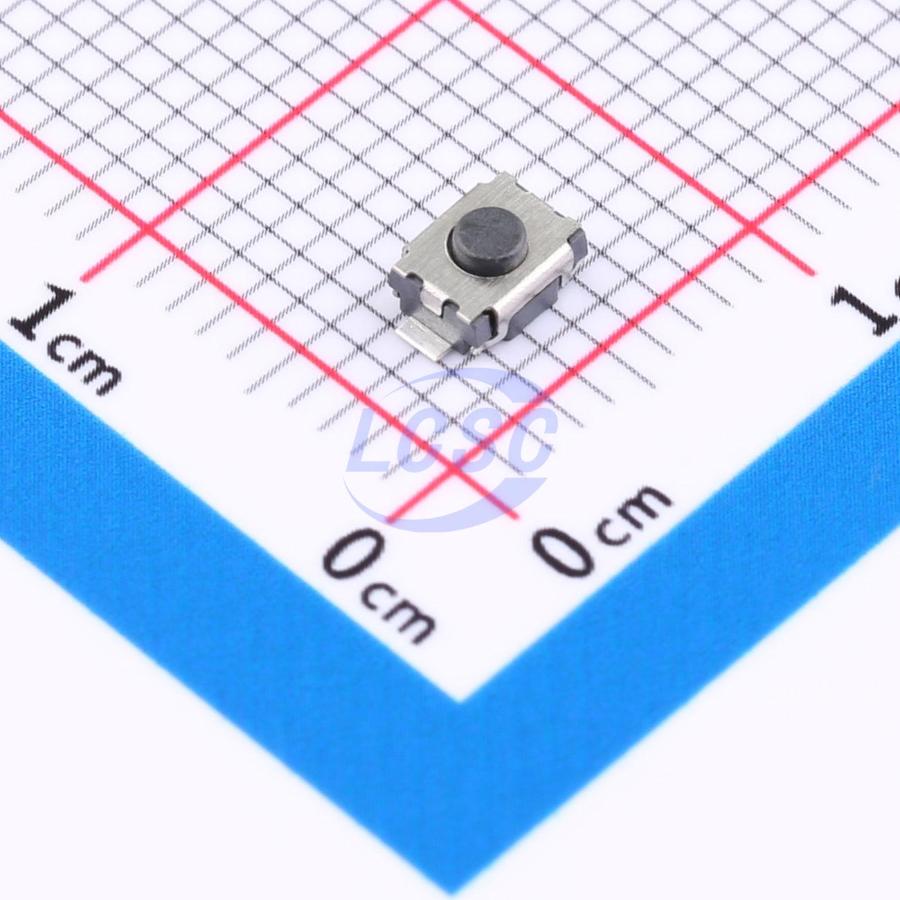

• Description: TS-1088-AR02016 3.932mm vertical SMT tactile switch; SPST; 1.6N; 50mA; 12V; black round button; without bracket
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: SMD,4x3mm
• Pin count: Unknown
• EasyEDA symbol UUID: 6abe1dddbd3443debe9ddd7e205967c4
• EasyEDA footprint UUID: 2ec66f0773b84a52891163c4b1887931
• EasyEDA device UUID: 53ec5e112a3f4d35b9b8aafef6c706d7
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: 12V
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Basic Part
• JLC note / assembly basis: EasyEDA/JLC verified common IoT basics seed
• Assembly status: jlc_basic
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/TS-1088-AR02016/763484.html
• Product URL: https://item.szlcsc.com/datasheet/TS-1088-AR02016/763484.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category tactile-switch, interfaces gpio, package SMD,4x3mm, and EasyEDA footprint UUID 2ec66f0773b84a52891163c4b1887931.
