015406.3DR
Identity
- Manufacturer: Littelfuse(美国力特)
- Model / MPN: 015406.3DR
- LCSC: C720203
- Category: smd-fuse

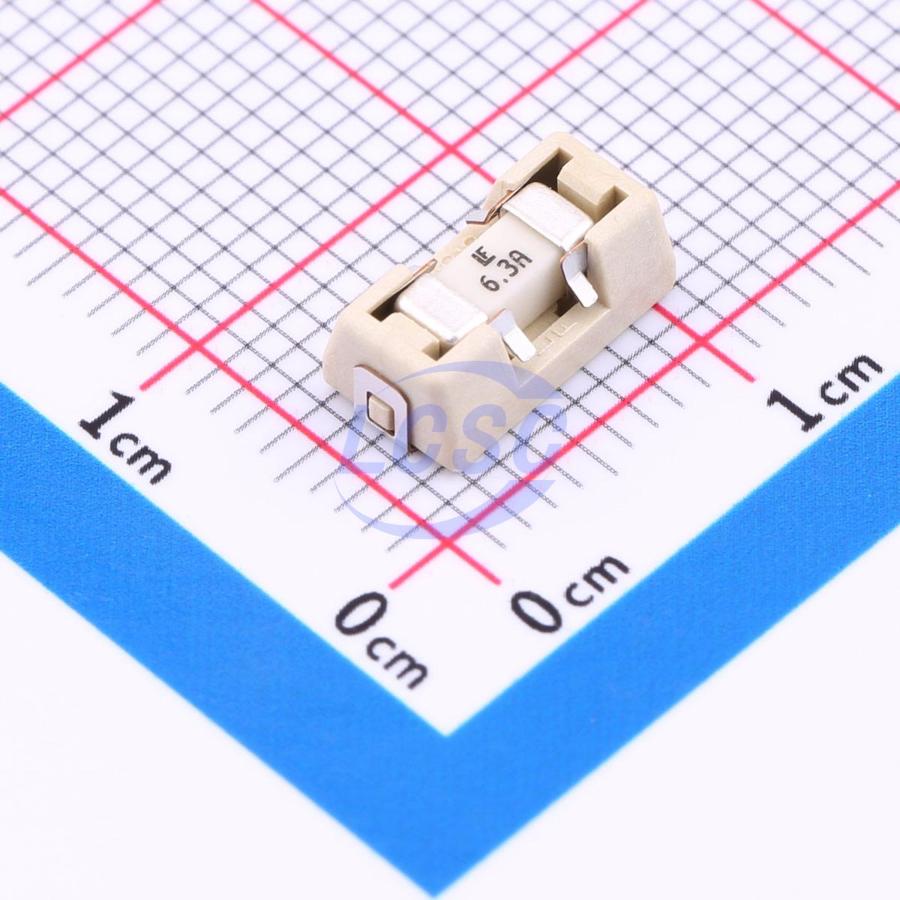

- Description: 6.3A 125V Surface Mount Fuse (with Holder) Type:Surface Mount Fuse (with Holder) Current Rating:6.3A Voltage Rating (DC):125V Operating Temperature:-55℃
+125℃ Operating Temperature:-55℃+125℃ Interrupt Rating:50A Length:9.73mm Width:5.03mm Height:3.81mm - Source: EasyEDA/JLC verified common component seed
- Project designators: Not project-specific
- Project quantity per board: Not project-specific
Capabilities
- Not captured yet.
Package And Footprint
- Package / footprint name: SMD,9.7x5mm
- Pin count: Unknown
- EasyEDA symbol UUID: d79d1ad9c5694ed1917285a0e6592dc7
- EasyEDA footprint UUID: 8d9330dffafa4f7f8a916e04dd28cece
- EasyEDA device UUID: d9d50b883a27460baa97cd33f2690459
- EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87
Power And Operating Modes
- Active current: Passive part; no quiescent current.
- Sleep / standby current: Passive part; no quiescent current.
- Supply rails: Application-defined.
- Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.
Procurement Classification
- JLC class: Extended Part
- JLC note / assembly basis: EasyEDA/JLC verified common debug headers, FPC/mezzanine connectors, field wiring terminals, and fuse seed
- Assembly status: jlc_extended
- Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
- Live stock: intentionally not stored as durable selection data; refresh externally before ordering.
Datasheet And Links
- Datasheet / product URL: https://item.szlcsc.com/datasheet/015406.3DR/763225.html
- Product URL: https://item.szlcsc.com/datasheet/015406.3DR/763225.html
- Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.
Selection Notes
- Good for: non-resettable input protection, branch-rail protection, USB/load protection, and compact replace-by-rework fuse points
- Avoid when: Not captured yet.
- Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
- Equivalent search hints: match category
smd-fuse, interfaces none captured, packageSMD,9.7x5mm, and EasyEDA footprint UUID8d9330dffafa4f7f8a916e04dd28cece.
