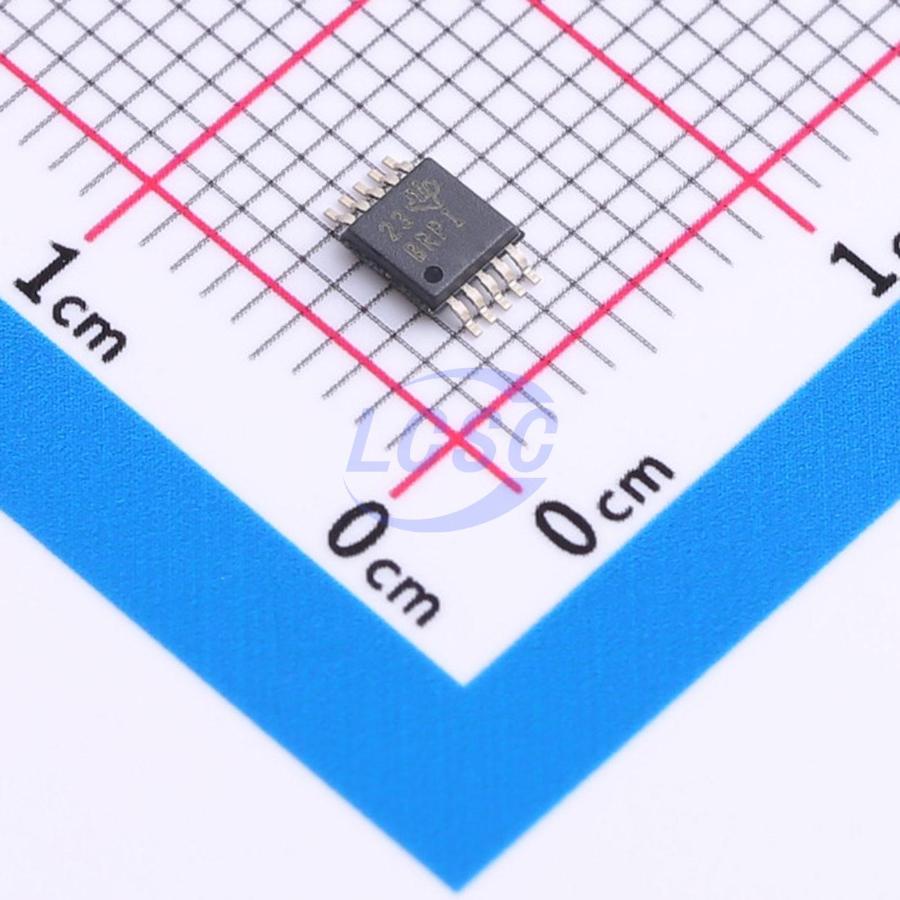

ADS1015IDGST

Identity

Manufacturer: TI(德州仪器)
Model / MPN: ADS1015IDGST
LCSC: C701606
Category: adc
Description: Ultra-small low-power 12-bit I2C ADC with internal reference, oscillator and programmable comparator, 2V~5.5V, 3.3kHz, 2 channels.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

i2c: interface
adc: interface

Package And Footprint

Package / footprint name: VSSOP-10-0.5mm
Pin count: Unknown
EasyEDA symbol UUID: 2b768cf85a4b4be78925bdab7dda4d85
EasyEDA footprint UUID: b7a4dec7fad6447e9a166a8f5483c35d
EasyEDA device UUID: 046a102368a34a58a218e1ba1f60bec2
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 2V~5.5V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common power, analog, and interface IC seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://www.ti.com/cn/lit/ds/symlink/ads1014.pdf
Product URL: https://www.ti.com/cn/lit/ds/symlink/ads1014.pdf
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: external precision analog measurements, differential sensor inputs, and microcontrollers with limited ADC channels
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category adc, interfaces i2c, adc, package VSSOP-10-0.5mm, and EasyEDA footprint UUID b7a4dec7fad6447e9a166a8f5483c35d.
