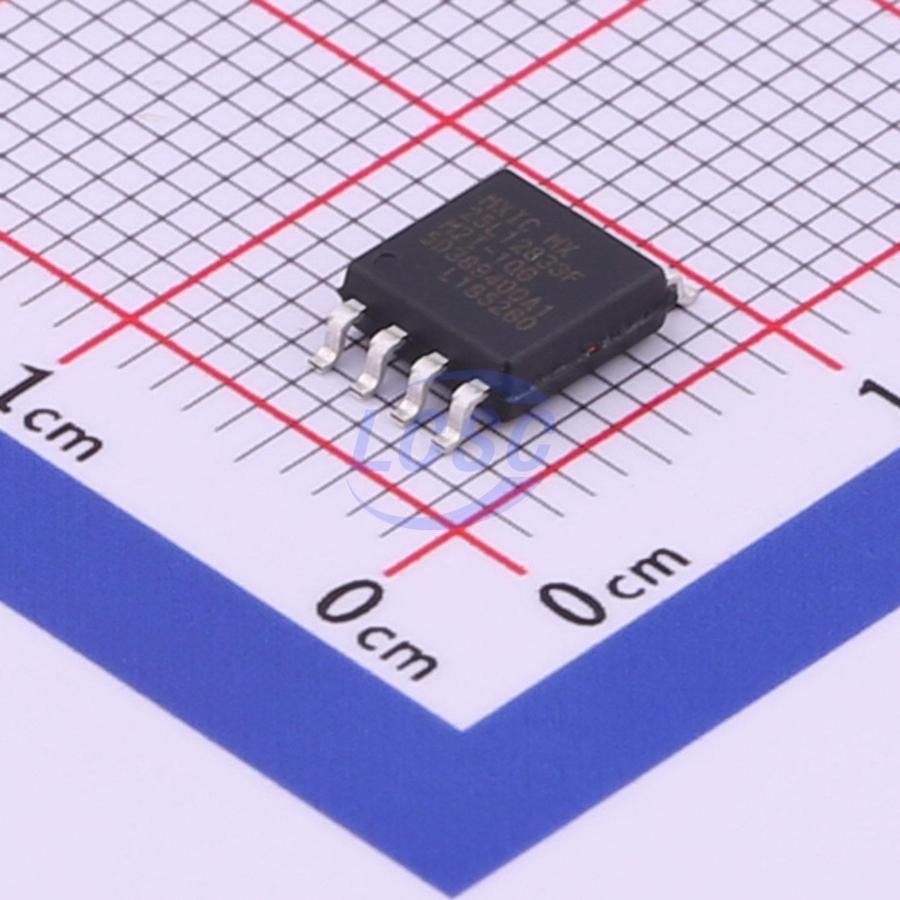

MX25L12833FM2I-10G

Identity

• Manufacturer: MXIC(旺宏电子)
• Model / MPN: MX25L12833FM2I-10G
• LCSC: C701355
• Category: flash-memory
• Description: MX25L12833FM2I-10G SPI Interface Type:SPI Memory Size:128Mbit Supply Voltage:2.7V3.6V Supply Voltage:2.7V3.6V Operating Temperature:-40℃+85℃ Operating Temperature:-40℃+85℃
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• spi: interface

Package And Footprint

• Package / footprint name: SOP-8-200mil
• Pin count: 8
• EasyEDA symbol UUID: e19dd95390c0429bbc4b03e03b000a33
• EasyEDA footprint UUID: 3d7987d6ea6d453187e9627f241abb76
• EasyEDA device UUID: 1c7df20f9fdc405dbdae0994e442a072
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common memory, timing, storage, and security seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://atta.szlcsc.com/upload/public/pdf/source/20200803/C701355_4C7EBAFB8A469496F8246F598976A81B.pdf
• Product URL: https://atta.szlcsc.com/upload/public/pdf/source/20200803/C701355_4C7EBAFB8A469496F8246F598976A81B.pdf
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: external firmware storage, OTA staging, logs, filesystems, fonts, assets, and calibration blobs over SPI/QSPI
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category flash-memory, interfaces spi, package SOP-8-200mil, and EasyEDA footprint UUID 3d7987d6ea6d453187e9627f241abb76.

Search Keywords

seed:common-memory-timing-security, source:easyeda-bridge, iot, common-pcb, storage, timing, security, mx25l128, spi-nor, 128mbit, mxic, sop-8-200mil, flash-memory, jlc-extended, spi, jlc_extended, jlc-note:easyeda-jlc-verified-common-memory-timing-storage-and-security-seed
