FH34SRJ-6S-0.5SH(99)

Identity

• Manufacturer: HRS(广濑)
• Model / MPN: FH34SRJ-6S-0.5SH(99)
• LCSC: C6947655
• Category: fpc-connector

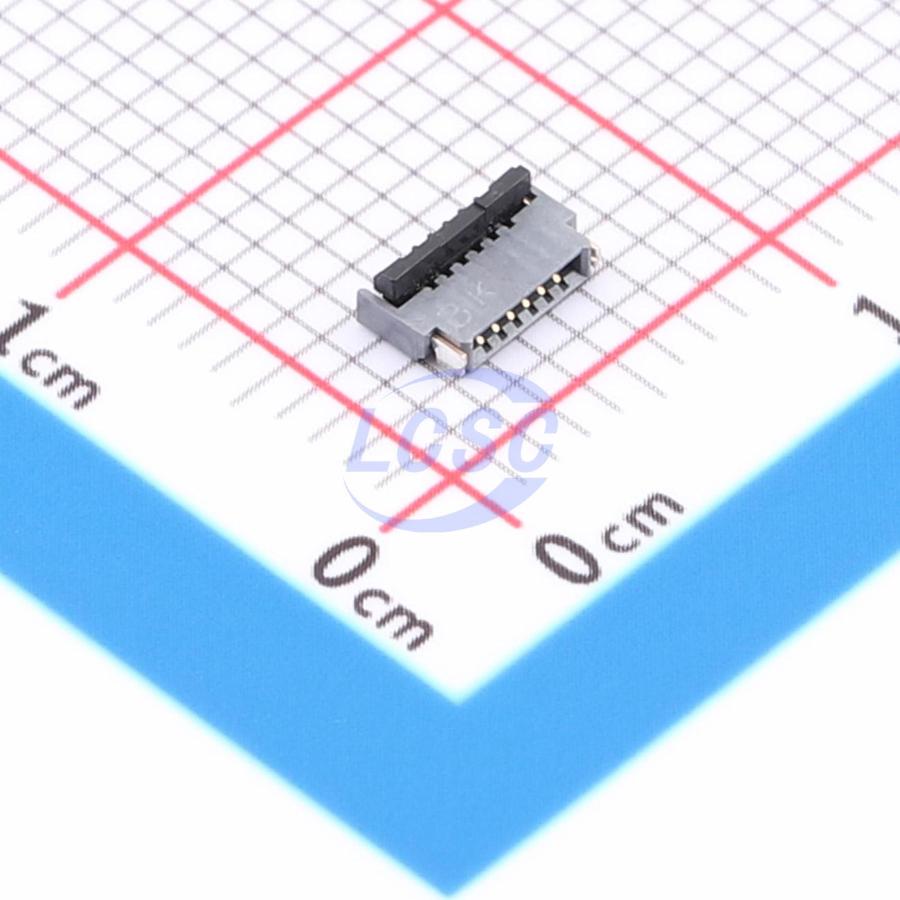

• Description: 6P 0.5mm FPC connector, double-sided contacts with top/bottom entry, SMT right angle, FFC/FCB 0.3mm, height 1mm, phosphor bronze, gold plating
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• fpc: interface

Package And Footprint

• Package / footprint name: SMD,P=0.5mm,卧贴
• Pin count: Unknown
• EasyEDA symbol UUID: 5aa02d3da6344dd48ce9b9cda389c661
• EasyEDA footprint UUID: 094008a289b649ed8bbcdc545fa98745
• EasyEDA device UUID: a80f3d3b5ad142328a0d5d055de14564
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common debug headers, FPC/mezzanine connectors, field wiring terminals, and fuse seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/FH34SRJ-6S-0.5SH(99)/7913457.html
• Product URL: https://item.szlcsc.com/datasheet/FH34SRJ-6S-0.5SH(99)/7913457.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: flat-flex display, camera, keypad, touch-panel, daughterboard, and enclosure cable interconnects
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category fpc-connector, interfaces fpc, package SMD,P=0.5mm,卧贴, and EasyEDA footprint UUID 094008a289b649ed8bbcdc545fa98745.
