AT24C08C-XHM-B

Identity

Manufacturer: MICROCHIP(美国微芯)
Model / MPN: AT24C08C-XHM-B
LCSC: C619842
Category: eeprom
Description: AT24C08C-XHM-B 1.7V~5.5V I2C Interface:I2C Memory Size:8Kbit Clock Frequency:1MHz Clock Frequency:1MHz Write Cycle Time(Tw):5ms Data Retention - TDR (Year):100 Years Write Cycle Endurance:1,000,000 cycles Features:Hardware write protection function；Noise suppression function；Built-in
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

i2c: interface

Package And Footprint

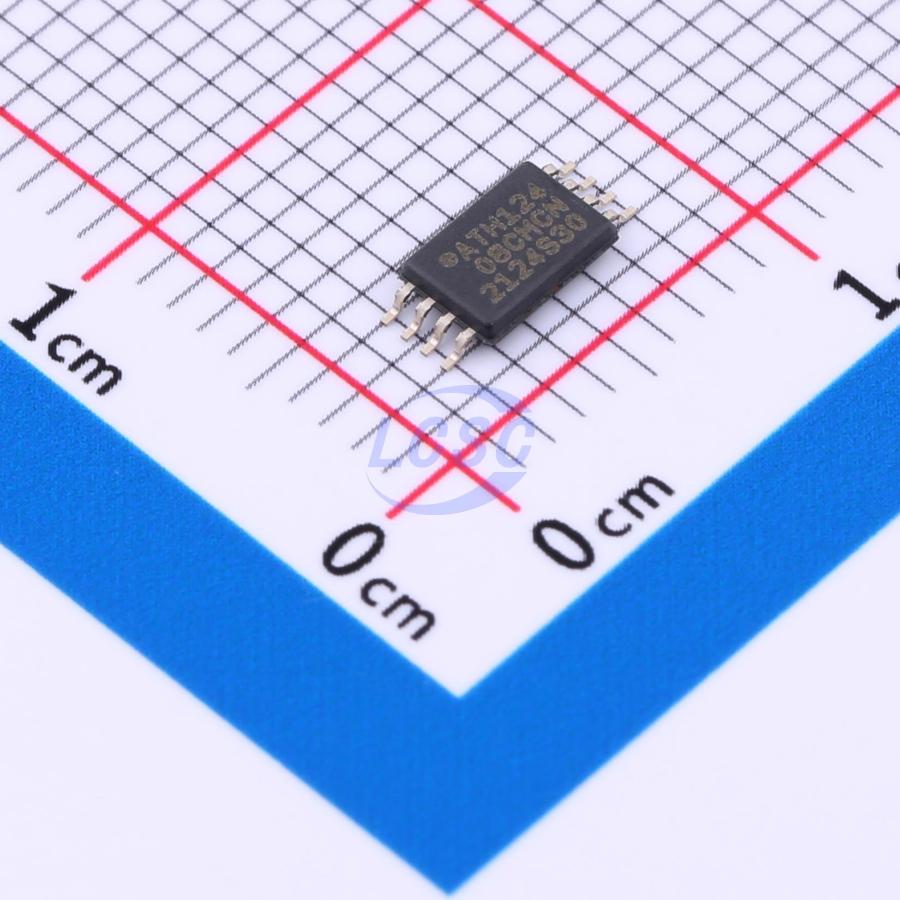

Package / footprint name: TSSOP-8
Pin count: 8
EasyEDA symbol UUID: 9f9381b277594532a0e99d8f31fa562b
EasyEDA footprint UUID: cd9ecd67d47049f9b5dc073abad8625e
EasyEDA device UUID: d1b157c06cb84b4eb3d5188acfca6dab
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 1.7V~5.5V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common memory, timing, storage, and security seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/AT24C08C-XHM-B/649683.html
Product URL: https://item.szlcsc.com/datasheet/AT24C08C-XHM-B/649683.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: small nonvolatile configuration, calibration, board identity, counters, and manufacturing data over I2C
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category eeprom, interfaces i2c, package TSSOP-8, and EasyEDA footprint UUID cd9ecd67d47049f9b5dc073abad8625e.
