AMS1117-3.3

Identity

Manufacturer: Advanced Monolithic Systems
Model / MPN: AMS1117-3.3
LCSC: C6186
Category: ldo-regulator
Description: 3.3V 1A 15V 15V Output Configuration:Positive Voltage - Supply:15V Output Voltage:3.3V Output Voltage:3.3V Output Current:1A Power Supply Rejection Ratio (PSRR):72dB@(120Hz) Voltage Dropout:1.1V@(800mA) standby current:5mA Noise:0.003%Vout Features:Short Circuit Protecti
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

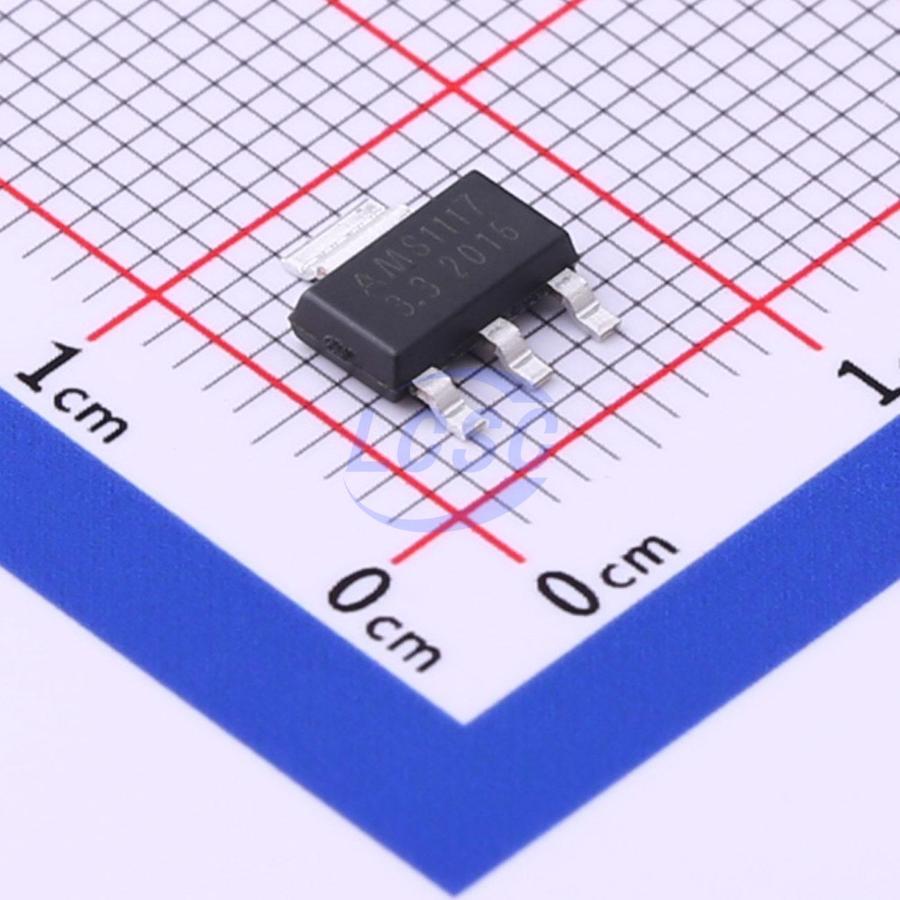

Package / footprint name: SOT-223
Pin count: Unknown
EasyEDA symbol UUID: 3a722c507edd40aaae3dfcc1cd949606
EasyEDA footprint UUID: 3767aed10eb54212a0c4d5ce56a31803
EasyEDA device UUID: c9e8f680e30a4d3cbde4cfbe9622845b
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 15V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Basic Part
JLC note / assembly basis: EasyEDA/JLC verified common IoT basics seed
Assembly status: jlc_basic
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/AMS1117-3.3/6652.html
Product URL: https://item.szlcsc.com/datasheet/AMS1117-3.3/6652.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: power-tree designs when ratings and layout constraints fit
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category ldo-regulator, interfaces none captured, package SOT-223, and EasyEDA footprint UUID 3767aed10eb54212a0c4d5ce56a31803.

Search Keywords

seed:common-iot-basics, source:easyeda-bridge, iot, common-pcb, ams1117, 3.3v, ldo, sot-223, basic-part, ldo-regulator, jlc-basic, jlc_basic, jlc-note:easyeda-jlc-verified-common-iot-basics-seed, power
