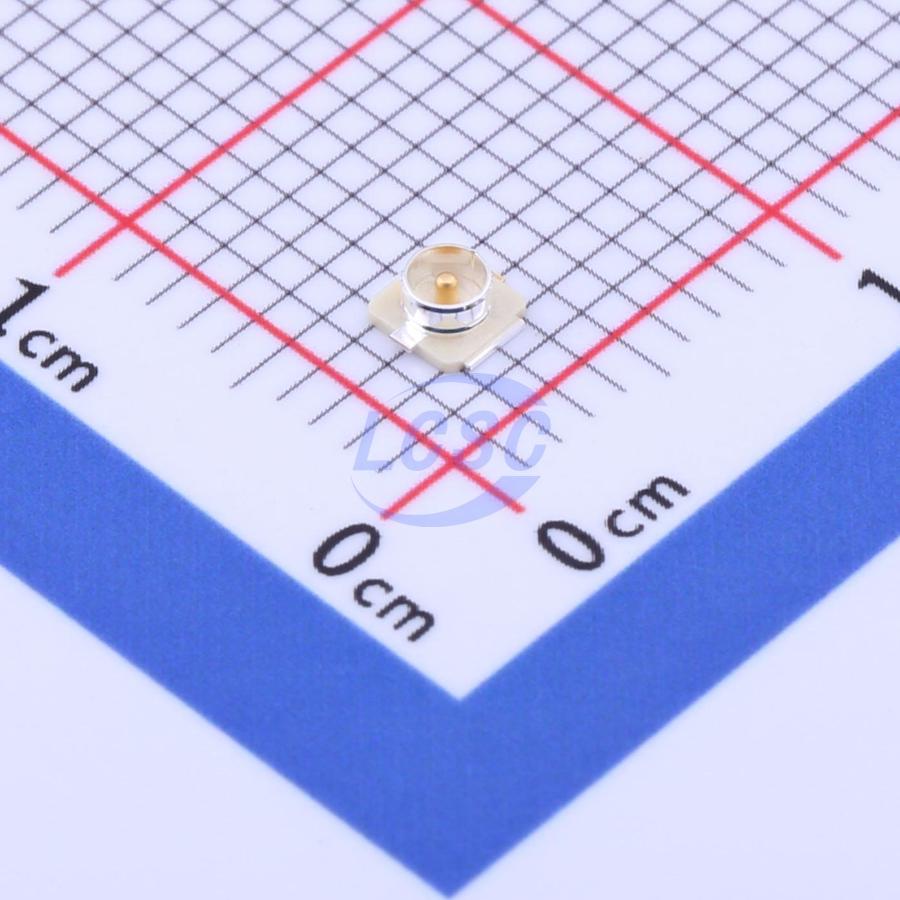

U.FL-R-SMT-1(01)

Identity

• Manufacturer: HRS(广濑)
• Model / MPN: U.FL-R-SMT-1(01)
• LCSC: C598199
• Category: rf-connector
• Description: IPEX U.FL board RF connector, male pin, 6GHz, 1 port, Interface Diameter:2mm, height 1.25mm, 50Ω, -40°C~+90°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• rf: interface

Package And Footprint

• Package / footprint name: SMD
• Pin count: Unknown
• EasyEDA symbol UUID: 9708416f461d4c8988c02daac8deeb83
• EasyEDA footprint UUID: a1c712c6f04d47b881cc9049ea8c44c0
• EasyEDA device UUID: 7470fcee36e14a0e9785c12280c07f2f
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common connectivity, positioning, and RF interface seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/U.FL-R-SMT-1(01)/626815.html
• Product URL: https://item.szlcsc.com/datasheet/U.FL-R-SMT-1(01)/626815.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category rf-connector, interfaces rf, package SMD, and EasyEDA footprint UUID a1c712c6f04d47b881cc9049ea8c44c0.
