FH12A-45S-0.5SH(55)

Identity

Manufacturer: HRS(广濑)
Model / MPN: FH12A-45S-0.5SH(55)
LCSC: C598001
Category: fpc-connector

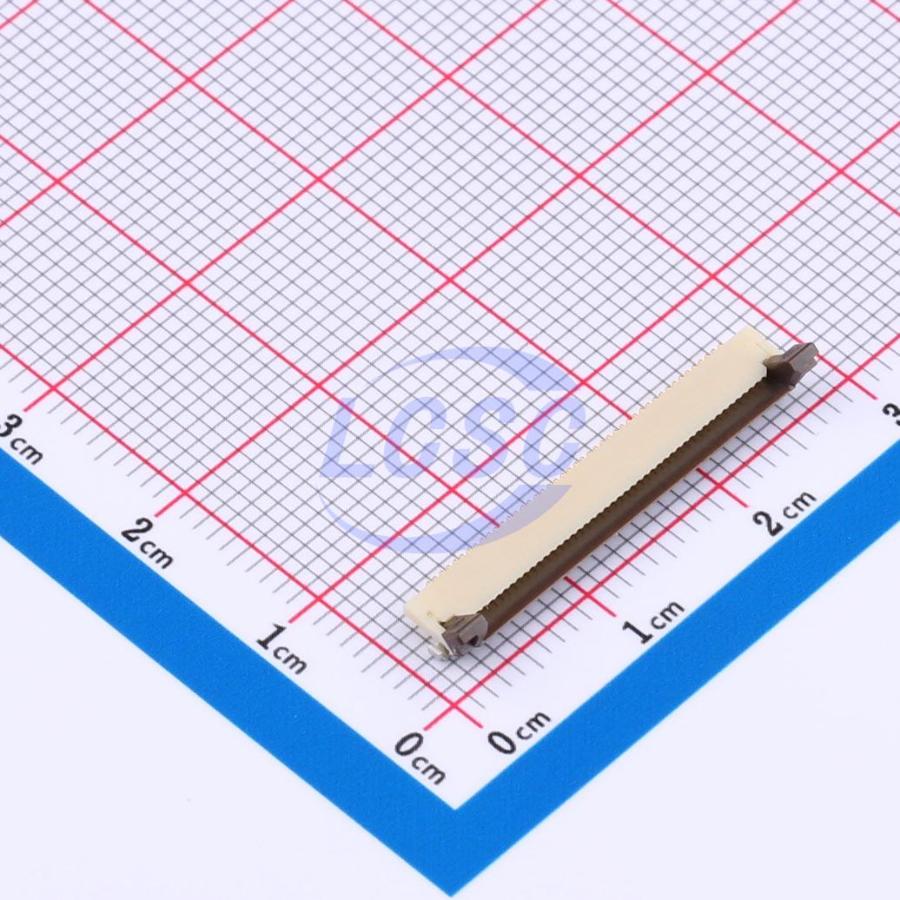

Description: 45P 0.5mm hinged-lid FPC connector, top contact, SMT right angle, FFC/FCB 0.3mm, height 2mm, phosphor bronze, gold plating
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

fpc: interface

Package And Footprint

Package / footprint name: SMD,P=0.5mm,卧贴
Pin count: Unknown
EasyEDA symbol UUID: f611a4e811d7429eaed0b40c50c11eb0
EasyEDA footprint UUID: 04967892d7f04d0991a198390752d6fa
EasyEDA device UUID: 74ad5e2ce55d4ea5875ac4e5f3db2162
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common debug headers, FPC/mezzanine connectors, field wiring terminals, and fuse seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/FH12A-45S-0.5SH(55)/626617.html
Product URL: https://item.szlcsc.com/datasheet/FH12A-45S-0.5SH(55)/626617.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: flat-flex display, camera, keypad, touch-panel, daughterboard, and enclosure cable interconnects
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category fpc-connector, interfaces fpc, package SMD,P=0.5mm,卧贴, and EasyEDA footprint UUID 04967892d7f04d0991a198390752d6fa.
