FH12A-20S-0.5SH(55)

Identity

• Manufacturer: HRS(广濑)
• Model / MPN: FH12A-20S-0.5SH(55)
• LCSC: C597998
• Category: fpc-connector

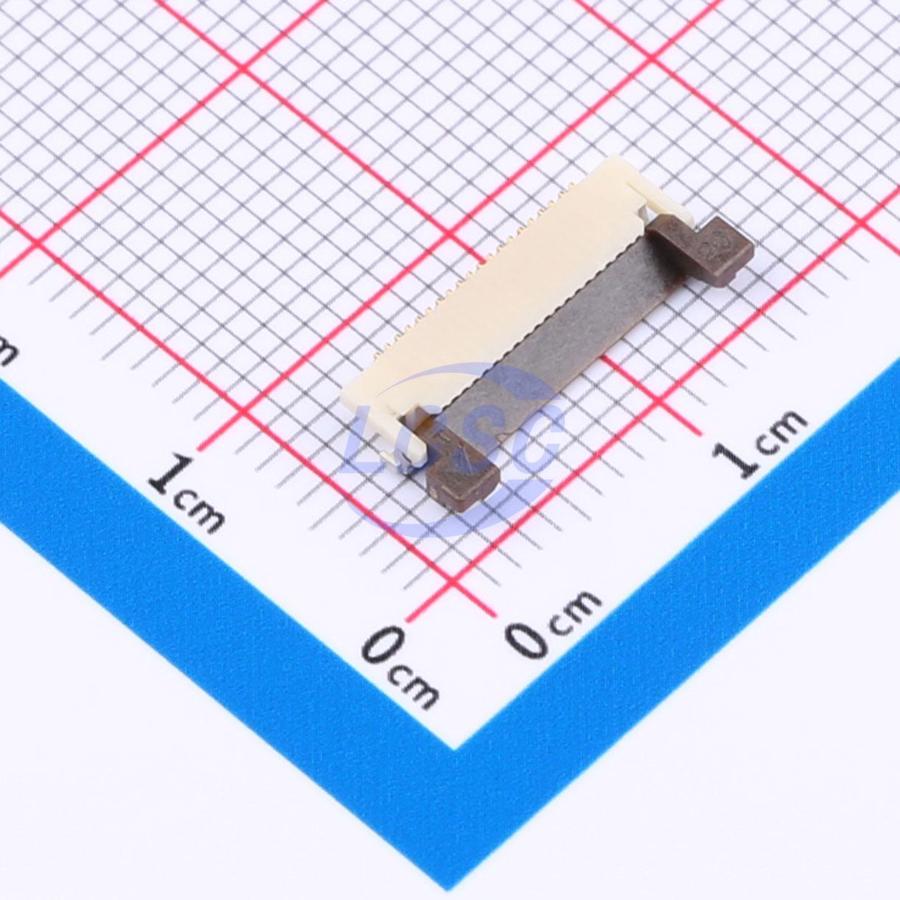

• Description: 20P 0.5mm hinged-lid FPC connector, top contact, SMT right angle, FFC/FCB 0.3mm, height 2mm, phosphor bronze, gold plating
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• fpc: interface

Package And Footprint

• Package / footprint name: SMD,P=0.5mm,卧贴
• Pin count: Unknown
• EasyEDA symbol UUID: b1eb7d06c4924316999e81073ad38019
• EasyEDA footprint UUID: 7591800aea5d40eaa58e3ad33056fb11
• EasyEDA device UUID: 7394f52f846d46728861f84e65d62398
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common debug headers, FPC/mezzanine connectors, field wiring terminals, and fuse seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/FH12A-20S-0.5SH(55)/626614.html
• Product URL: https://item.szlcsc.com/datasheet/FH12A-20S-0.5SH(55)/626614.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: flat-flex display, camera, keypad, touch-panel, daughterboard, and enclosure cable interconnects
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category fpc-connector, interfaces fpc, package SMD,P=0.5mm,卧贴, and EasyEDA footprint UUID 7591800aea5d40eaa58e3ad33056fb11.
