TS-1109G-5026

Identity

• Manufacturer: SOFNG(硕方)
• Model / MPN: TS-1109G-5026
• LCSC: C596260
• Category: tactile-switch

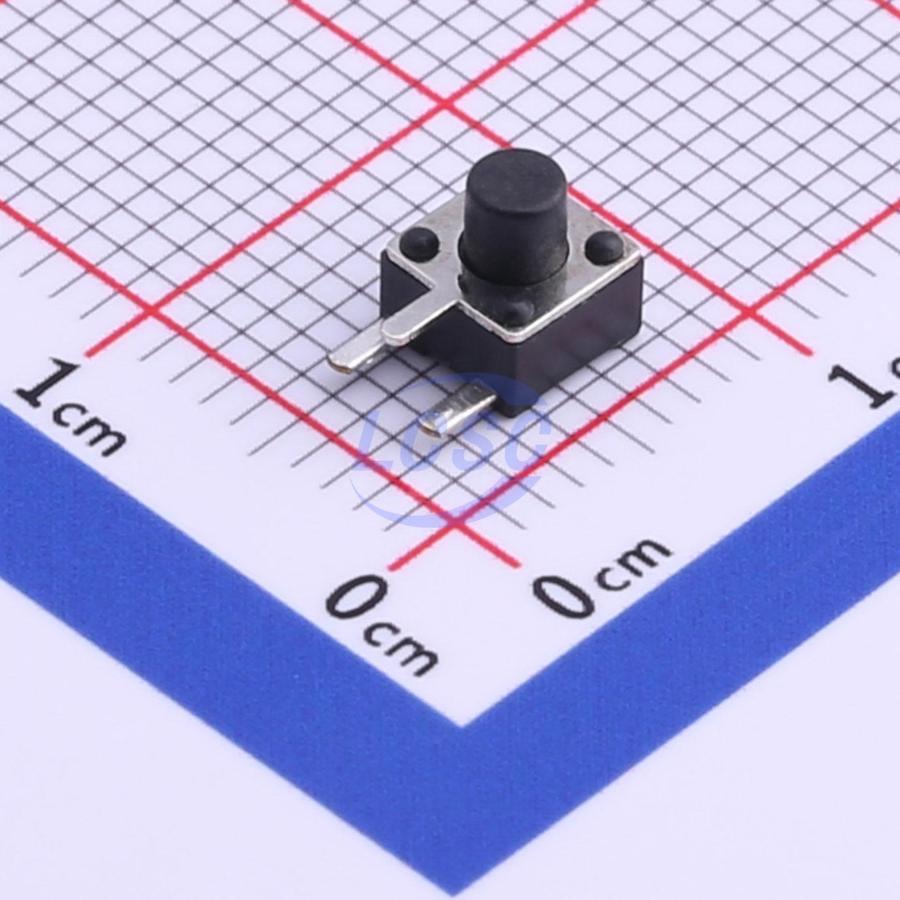

• Description: 4.54.55mm horizontal plug tactile switch, SPST round black button, 2.6N, 25mA 24V, mechanical life 65,000.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: 插件
• Pin count: Unknown
• EasyEDA symbol UUID: 3f0c76249440431cb9aad3cd11801a28
• EasyEDA footprint UUID: 5da13d34bf3c44399e93fa35b71e3325
• EasyEDA device UUID: a3123ebdb74c4b5d89f3e8a8d61b0803
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common connector, HMI, and mechanical interface seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://atta.szlcsc.com/upload/public/pdf/source/20200609/C596259_6EDD35ADA7BA9F3D250BD9742BC8C376.pdf
• Product URL: https://atta.szlcsc.com/upload/public/pdf/source/20200609/C596259_6EDD35ADA7BA9F3D250BD9742BC8C376.pdf
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category tactile-switch, interfaces gpio, package 插件, and EasyEDA footprint UUID 5da13d34bf3c44399e93fa35b71e3325.
