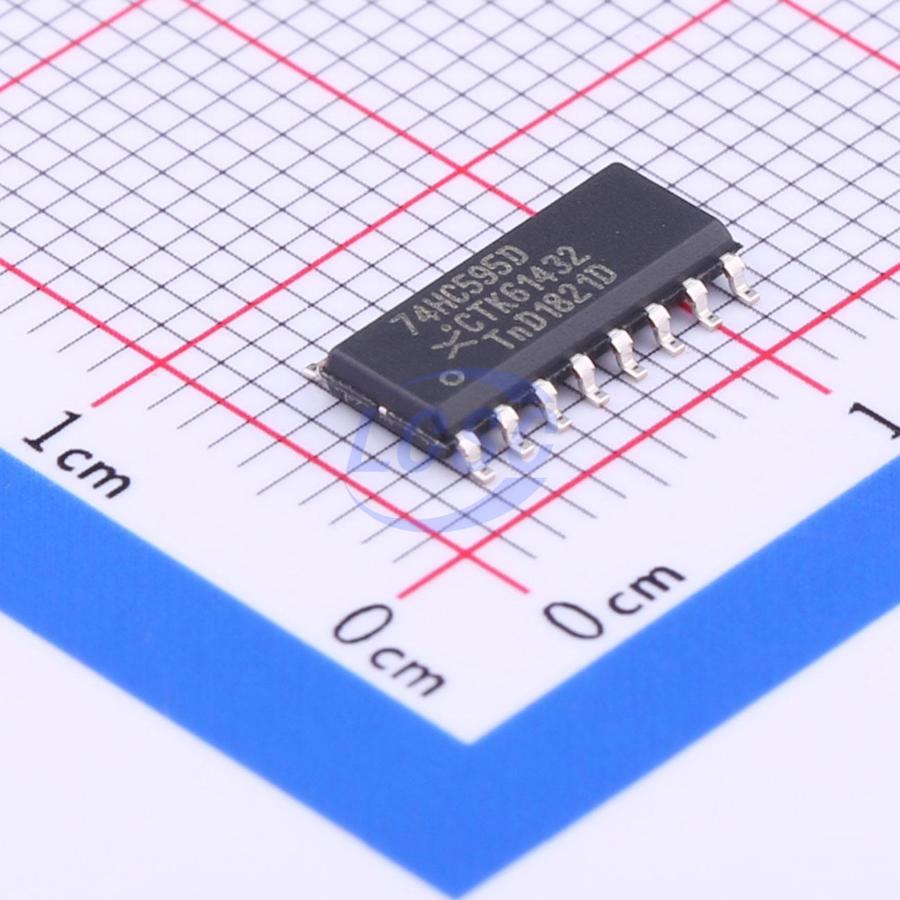

74HC595D,118

Identity

Manufacturer: Nexperia(安世)
Model / MPN: 74HC595D,118
LCSC: C5947
Category: shift-register
Description: Tri-state serial-to-serial or parallel shift register, 74HC series, 2V~~6V supply, 100MHz clock, 1 element, 8 bits, -40°C~~+125°C.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

spi: interface
gpio: interface

Package And Footprint

Package / footprint name: SOIC-16
Pin count: 16
EasyEDA symbol UUID: f5068878be894f78af624c754f524be7
EasyEDA footprint UUID: 4959e4dfa86f4201a35b5dde58e69895
EasyEDA device UUID: 995ef08a682343b78337c31fb467d70f
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 2V~6V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Basic Part
JLC note / assembly basis: EasyEDA/JLC verified common power, analog, and interface IC seed
Assembly status: jlc_basic
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/74HC595D%252C118/6413.html
Product URL: https://item.szlcsc.com/datasheet/74HC595D%252C118/6413.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: low-cost GPIO expansion for LED banks, digital inputs, and simple scanned controls
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category shift-register, interfaces spi, gpio, package SOIC-16, and EasyEDA footprint UUID 4959e4dfa86f4201a35b5dde58e69895.
