LTC4311ISC6#TRMPBF

Identity

• Manufacturer: ADI(亚德诺)
• Model / MPN: LTC4311ISC6#TRMPBF
• LCSC: C580857
• Category: i2c-accelerator
• Description: Low-voltage I2C/SMBus accelerator, 1.6V5.5V, 2-Wire Bus, Number of Channels:2, Data Rate:400Kbps, -40°C+85°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

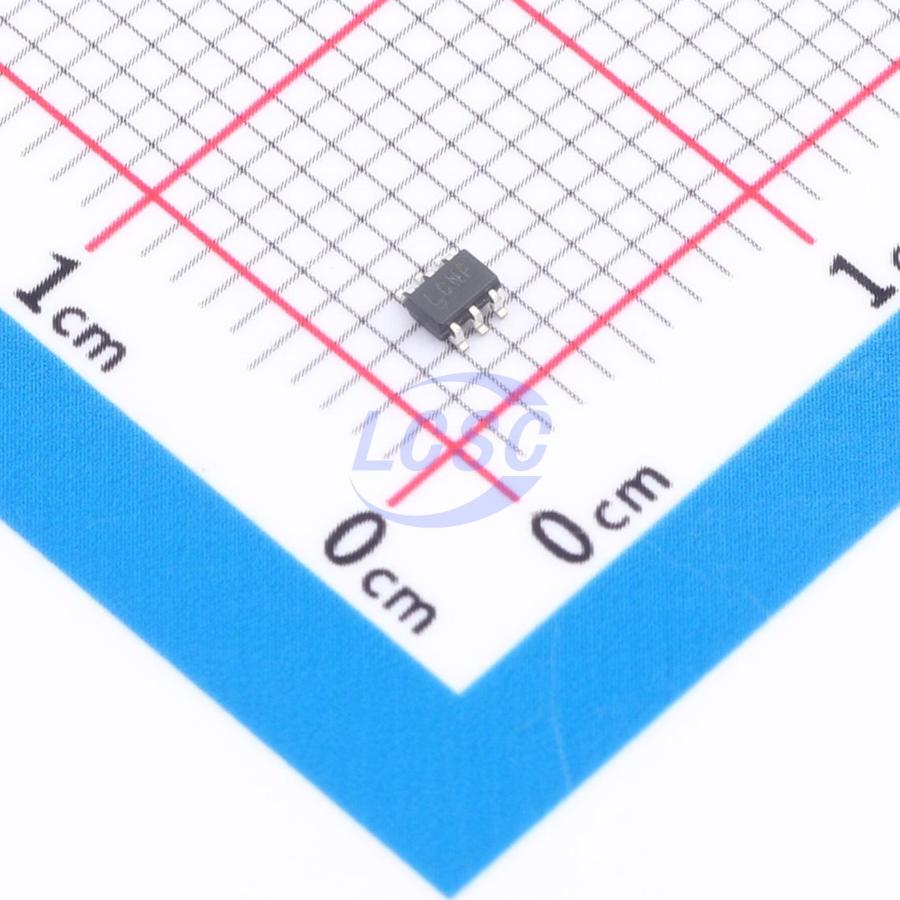

• Package / footprint name: SC-70-6
• Pin count: 6
• EasyEDA symbol UUID: f5b01ec57a5a485e9a37ed3b00b64468
• EasyEDA footprint UUID: a15338888433477fb4176dfae240ca64
• EasyEDA device UUID: a0a6dd8b14094f31bbf5e26525a6e2ce
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 1.6V~5.5V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common logic, level-shifting, bus-interface, and analog-switch seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/LTC4311ISC6%2523TRMPBF/608634.html
• Product URL: https://item.szlcsc.com/datasheet/LTC4311ISC6%2523TRMPBF/608634.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: improving I2C rise times on high-capacitance buses, cable runs, and multi-device sensor branches
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category i2c-accelerator, interfaces i2c, package SC-70-6, and EasyEDA footprint UUID a15338888433477fb4176dfae240ca64.
