ADXL362BCCZ-R2

Identity

Manufacturer: ADI(亚德诺)
Model / MPN: ADXL362BCCZ-R2
LCSC: C579463
Category: accelerometer
Description: Micropower 3-axis MEMS accelerometer, 1.6V~3.5V, SPI, X,Y,Z, range ±8g, Sensor Type:Accelerometer, Output Bits:12bit
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

spi: interface

Package And Footprint

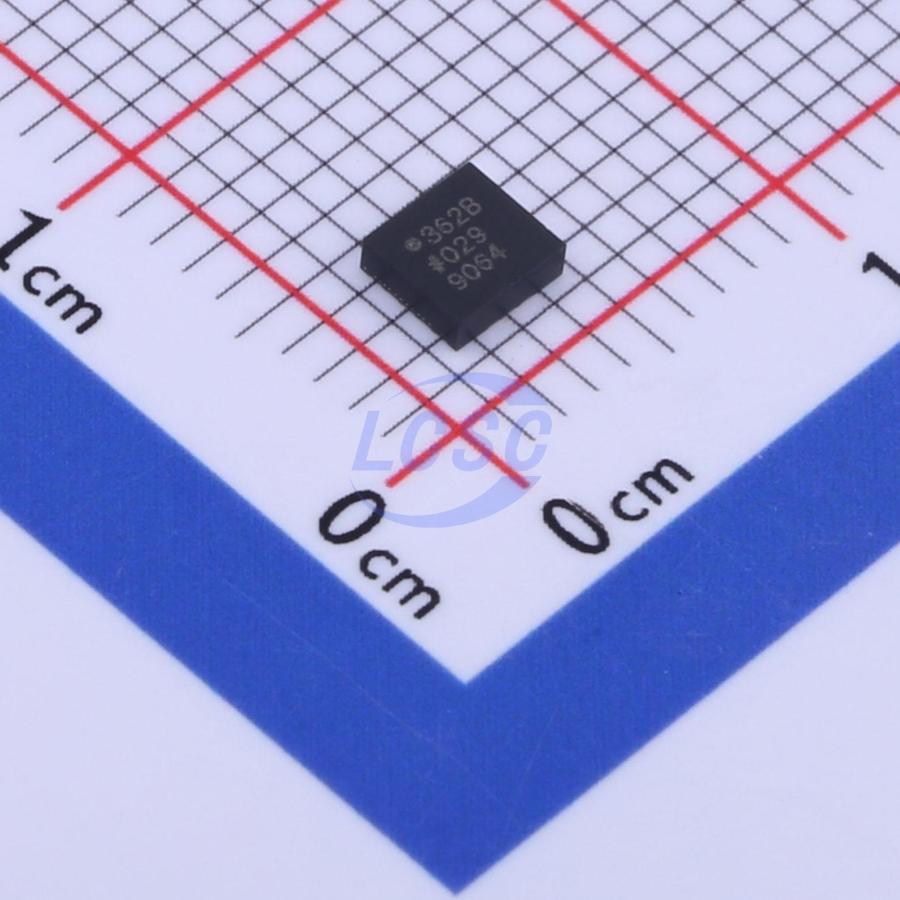

Package / footprint name: LGA-16(3x3.3)
Pin count: 16
EasyEDA symbol UUID: e1d3fca430f74da58350923d93da0700
EasyEDA footprint UUID: b4d9e1a1601240a5a504bebc6505fda5
EasyEDA device UUID: 2cf597886ec4459d95e69abda8172ad8
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: EasyEDA property: 10nA.
Supply rails: EasyEDA property: 1.6V~3.5V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common environment, motion, light, proximity, and temperature sensor seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/ADXL362BCCZ-R2/607240.html
Product URL: https://item.szlcsc.com/datasheet/ADXL362BCCZ-R2/607240.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: motion wake, tilt/orientation, vibration monitoring, impact detection, tap detection, and low-power activity sensing
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category accelerometer, interfaces spi, package LGA-16(3x3.3), and EasyEDA footprint UUID b4d9e1a1601240a5a504bebc6505fda5.
