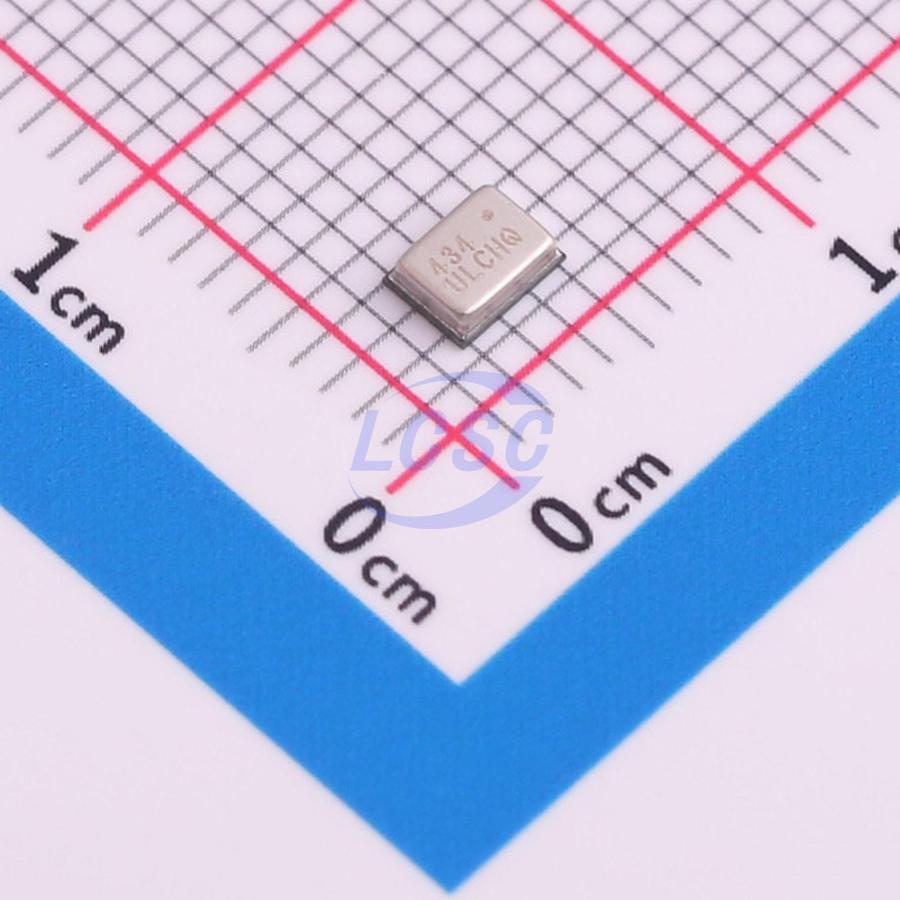

ICS-43434

Identity

• Manufacturer: TDK InvenSense(应美盛)
• Model / MPN: ICS-43434
• LCSC: C5656610
• Category: digital-microphone
• Description: 1.65V3.63V Direction:Omnidirectional Voltage - Supply:1.65V3.63V Voltage - Supply:1.65V~3.63V Current Consumption:550uA Current Consumption:550uA S/N Ratio:64dB Sensitivity:-26dB Sensitivity:-26dB Output Type:I2S Length:3.5mm Width:2.65mm Height:0.98mm Operating Te
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2s: interface

Package And Footprint

• Package / footprint name: LGA-6(3.5x2.7)
• Pin count: 6
• EasyEDA symbol UUID: 985412c5c7e9479098ae7c9d5e6ecd43
• EasyEDA footprint UUID: 927802d0ec86406aaff3089c921517ff
• EasyEDA device UUID: ea6d3dad996d464d91983d780e0fb112
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 1.65V~3.63V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common HMI, display, audio, touch, and haptic seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/ICS-43434/6577565.html
• Product URL: https://item.szlcsc.com/datasheet/ICS-43434/6577565.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: audio capture, voice triggers, noise monitoring, acoustic telemetry, and microphone front ends
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category digital-microphone, interfaces i2s, package LGA-6(3.5x2.7), and EasyEDA footprint UUID 927802d0ec86406aaff3089c921517ff.
