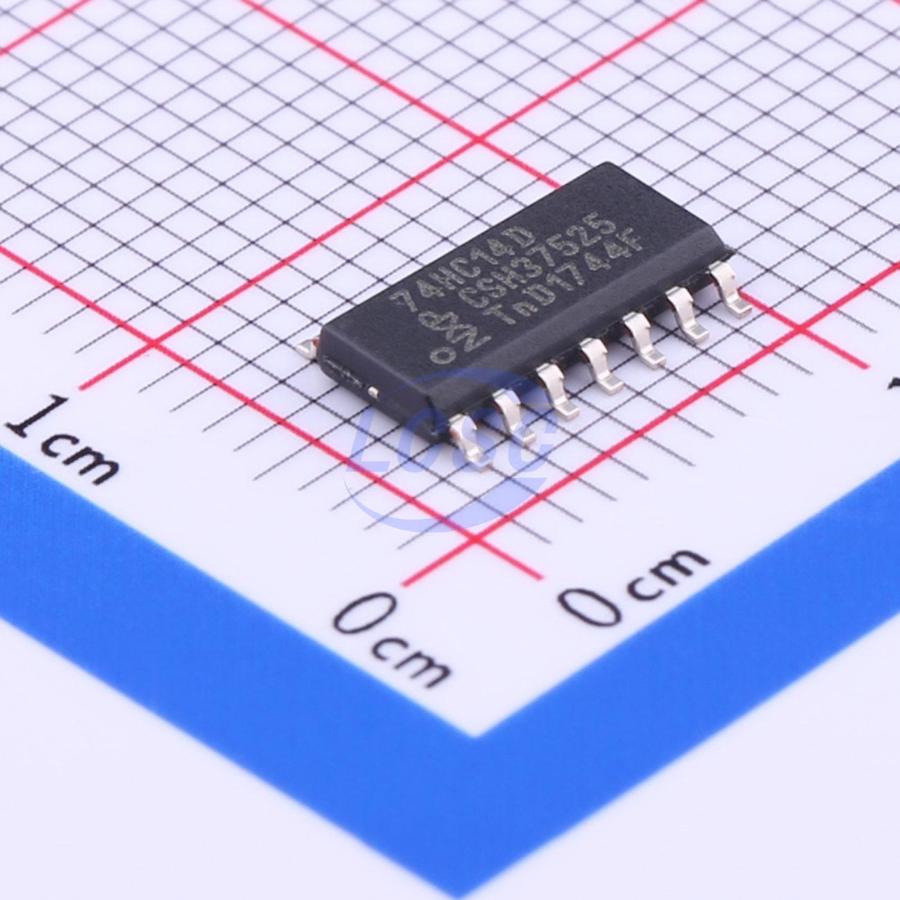

74HC14D,653

Identity

Manufacturer: Nexperia(安世)
Model / MPN: 74HC14D,653
LCSC: C5605
Category: schmitt-trigger
Description: Hex Schmitt-trigger inverter, 2V~~6V supply, 2uA Iq, 6 circuits, 1 input, 5.2mA IOL/IOH, high level 1.5V~~4.2V.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

gpio: interface

Package And Footprint

Package / footprint name: SOIC-14
Pin count: 14
EasyEDA symbol UUID: a93a63b7b2c749cbb38cfe04f952272e
EasyEDA footprint UUID: ffc76db8ffa142c1a7872c93f2ae0661
EasyEDA device UUID: d4ea5dbd459849549e57ff8cebe0cc07
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 2V~6V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Basic Part
JLC note / assembly basis: EasyEDA/JLC verified common logic, level-shifting, bus-interface, and analog-switch seed
Assembly status: jlc_basic
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/74HC14D%252C653/6056.html
Product URL: https://item.szlcsc.com/datasheet/74HC14D%252C653/6056.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: button debounce, slow-edge cleanup, RC timing, sensor threshold conditioning, and simple oscillator circuits
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category schmitt-trigger, interfaces gpio, package SOIC-14, and EasyEDA footprint UUID ffc76db8ffa142c1a7872c93f2ae0661.
