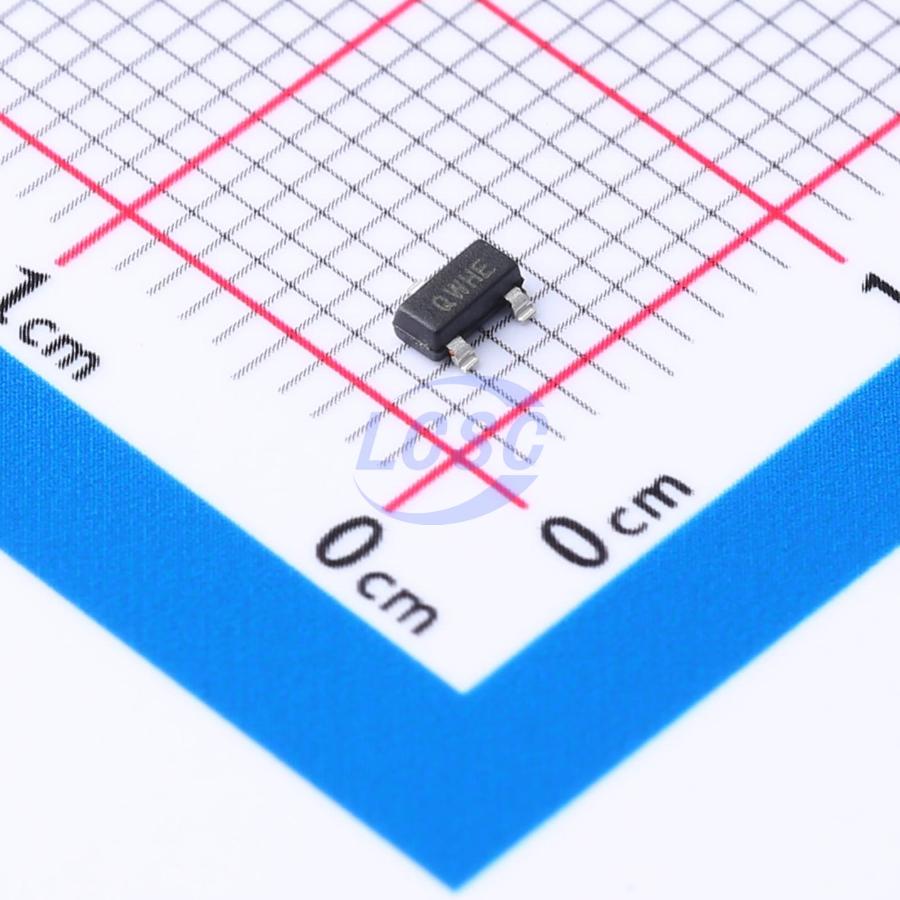

MCP809T-475I/TT

Identity

• Manufacturer: MICROCHIP(美国微芯)
• Model / MPN: MCP809T-475I/TT
• LCSC: C556891
• Category: reset-supervisor
• Description: MCP809T-475I/TT ChipType:Simple reset/Power-on reset Output Type:Push-Pull Reset Active Level:Active Low Threshold Voltage:4.625V Number of Voltages Monitored:1 Reset Timeout:150ms Operating Temperature:-40℃+85℃@(TA) Operating Temperature:-40℃+85℃@(TA)
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: SOT-23-3
• Pin count: 3
• EasyEDA symbol UUID: ad9ff547f8864b399fee0c726628f1e2
• EasyEDA footprint UUID: 18f92042a8ba46109ed61a02a6753de7
• EasyEDA device UUID: 7f1da49562c84d54a2b7acb7147e2b28
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common power, analog, and interface IC seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://atta.szlcsc.com/upload/public/pdf/source/20171212/C145694_15130637279641177750.pdf
• Product URL: https://atta.szlcsc.com/upload/public/pdf/source/20171212/C145694_15130637279641177750.pdf
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: MCU brownout reset, power-on reset, rail-good gating, and low-power voltage monitoring
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category reset-supervisor, interfaces gpio, package SOT-23-3, and EasyEDA footprint UUID 18f92042a8ba46109ed61a02a6753de7.
