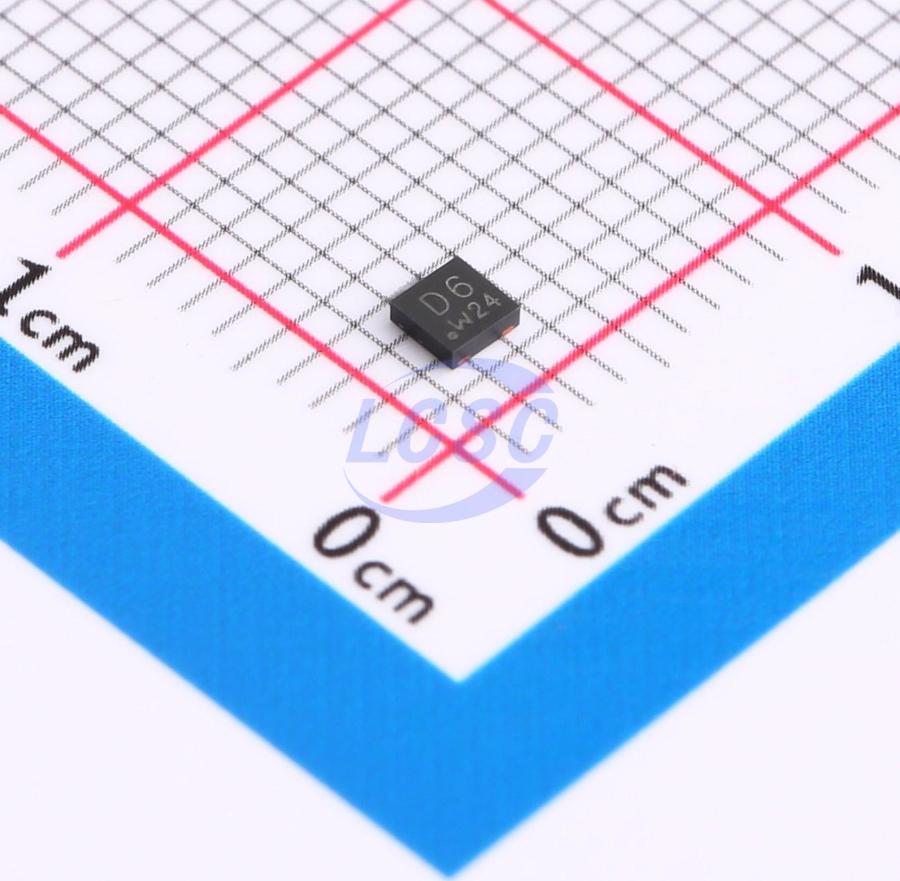

PTVS24VU1UPAZ

Identity

Manufacturer: Nexperia(安世)
Model / MPN: PTVS24VU1UPAZ
LCSC: C553400
Category: tvs-diode
Description: Unidirectional TVS diode, 24V Vrwm, 38.8V clamp, 79A@8/20us Ipp, 300W Ppp, 26.7V breakdown, 50nA leakage, 1.0 channel.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: DFN2020-3
Pin count: 2020
EasyEDA symbol UUID: d6c4b630220a49f3a69cfd41b1400963
EasyEDA footprint UUID: 66f11d2d033c4e92bf6dc7b5afdf3457
EasyEDA device UUID: 6fc009d163754856a365df995ed82cda
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified automotive load-dump and transient input protection seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/PTVS24VU1UPAZ/574407.html
Product URL: https://item.szlcsc.com/datasheet/PTVS24VU1UPAZ/574407.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category tvs-diode, interfaces none captured, package DFN2020-3, and EasyEDA footprint UUID 66f11d2d033c4e92bf6dc7b5afdf3457.

Search Keywords

seed:common-automotive-input-protection, source:easyeda-bridge, automotive, common-pcb, power-protection, 24v-standoff, dfn2020-3, littelfuse, 79a-surge, 12v-vehicle-rail, tvs-diode, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-automotive-load-dump-and-transient-input-protection-seed, power
